Howo NX wood cutting machine cargo truck

Africa clients purchased Howo NX cargo truck mounted wooden cutting machine, which is designed for wood cutting into pieces and collected for transportation. Which designed based on HOWO NX 4x2 truck chassis, equipped with WEICHAI WD615.87 diesel engine with 290HP and emission 9726cc, meet international EURO 2/3 emission and suitable for Africa market. Customized with powerful wooden cutting machine and side lifting device, also matched with full sealed insulating cargo box, efficiently for wood cutting into piece and suitable for transportation.

  • Kapasidad sa pagtatrabaho :

    10 Tons

  • Uri ng kubin :

    HOWO NX

  • Sistema ng pagmamaneho :

    4×2, RHD

  • Wheelbase (mm) :

    4600

  • Espesipiko sa makina :

    290HP/WD615.87

  • Kahon ng gear :

    HW15710

  • Ehe sa harap (Kg) :

    7500

  • Ehe sa likuran (Kg) :

    16000

  • Paalala :

    Customized wood cutting machine assembly
Magtanong Ngayon
MGA KATEGORYA NG PRODUKTO
Mga Bagong Produkto

The Howo NX cargo lorry truck with cutting machine is designed and export to Africa Zimbabwe market. Which is designed based on Sinotruk HOWO NX 4x2 truck chassis, equipped with HOWO NX new model cabin with green painting, right hand drive model, standard wheelbase 4600mm, installed with HOWO WEICHAI brand WD615.87 diesel engine with 290HP and emission 9726cc standard, matched with HW15710 manual transmission gearbox, 10 forward and 2 reverse back, Germany MAN technology front axle VGD75 model with capacity 7500kg and rear axle MCX16ZG rear single reduction with capacity 16000kg and speed ratio 4.803. Stronger frame 8+5/300 model with spring suspension 10/9+6, full exhaust air brake for safety driving. 12R22.5 tubeless tire with front single tire and rear double tires, totally 6+1 pcs.

HOWO heavy duty wood cutting equipment cargo lorry truck with full sealed insulating cargo box, side equipped with hydraulic lifting assembly and grab hook for container loading. Inside of the cargo body installed with customized hydraulic shearing type dual shaft shredder, efficiently treatment can be 0.5-2tons per hour. Which is an ideal truck that used for cutting wood, furniture, paper, tree, etc.

HOWO NX wooden cutting cargo truck



*HOWO NX 6 wheeler cutting machine cargo truck

HOWO Cargo Truck with Cutting Equipment*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



✦ Ⅰ.Product Introduction of HOWO cargo truck:

Manufacturer: CS TRUCKS Group



Features:

1.Low fuel consumption and economy: WEICHAI WD615.87 model 290HP diesel engine + HW15710 model 10-speed gearbox, excellent fuel economy, fuel consumption with 25% saved.



2.Customized full sealed insulating cargo body with size 5600x2400x2400mm, several compartment customized;


3.Hydraulic Control side lifting device for Loading & Unloading working;


4.Efficiently wood cutting machine, efficiently power 5.5-11kw customized, claw-shaped alloy steel blade, outlet size can be customized as 20-100mm and efficiently working capability is 0.5-2tons per hour;


5.High-tensile steel chains:imported hydraulic oil cylinder and sealing material;


6.Control system: Germany Siemens PLC electric control box and Hydraulic Valve Control system.

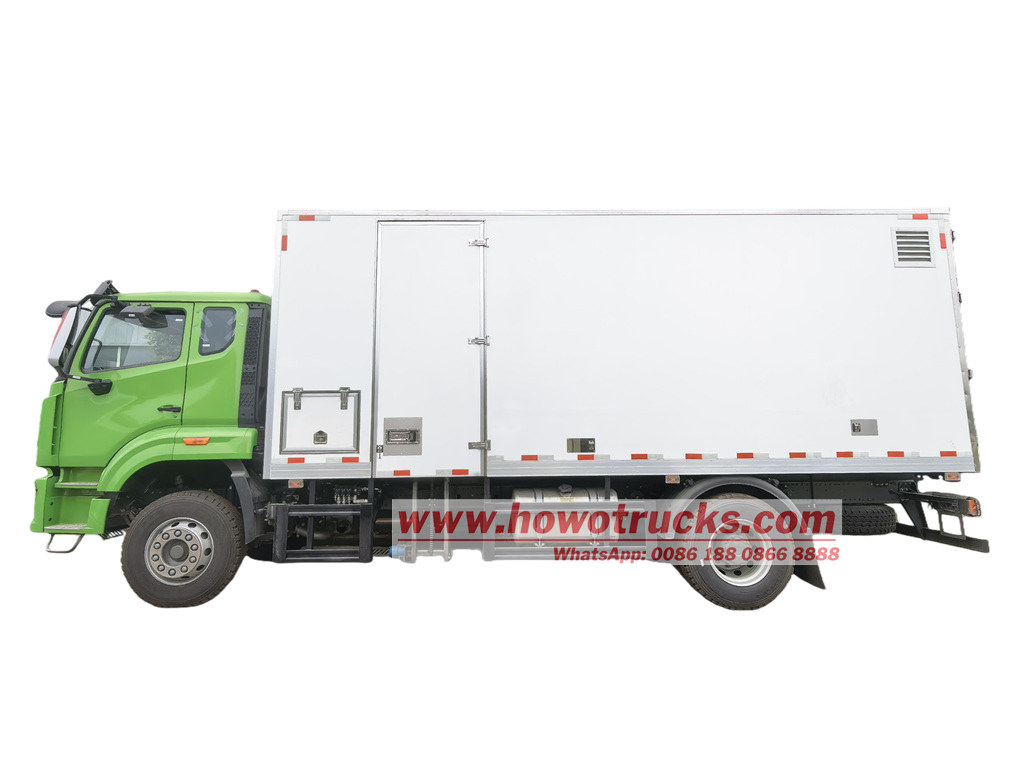

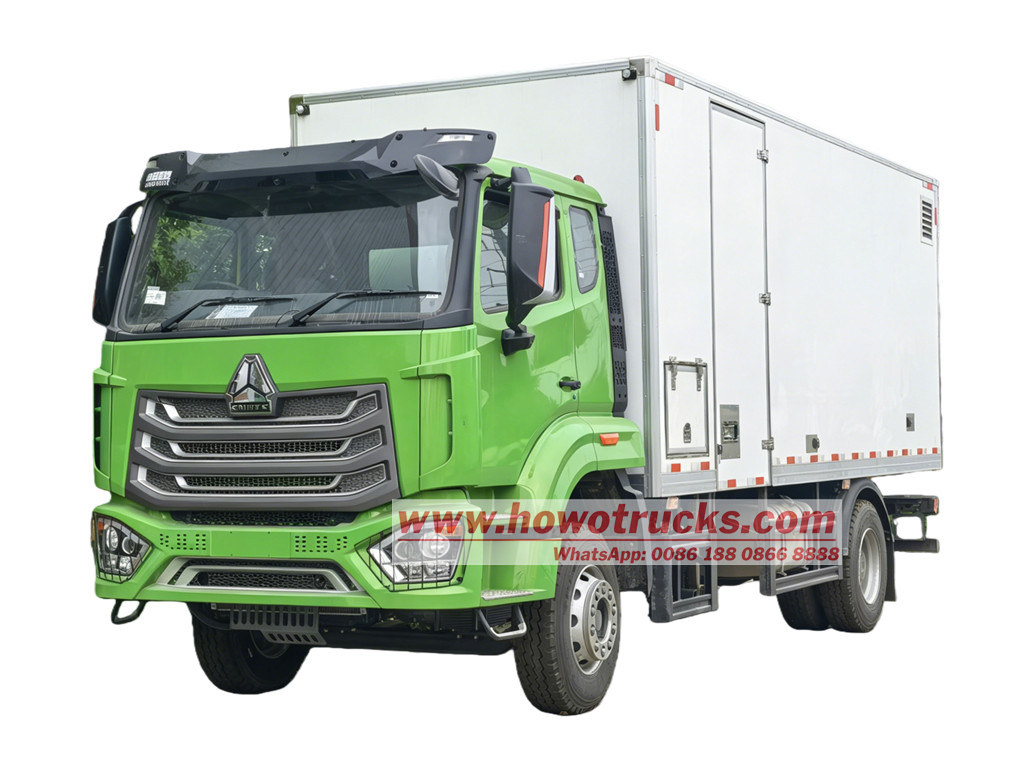

HOWO NX wooden cutting cargo truck



✦  Ⅱ. Product Component for HOWO cargo truck with cutting equipment:

Africa customer purchased HOWO NX RHD cargo truck with insulating body, with full sealed cargo body and equipped with customized equipment, including side hydraulic lifting device with grab, and wood cutting machine.

Control System: Installed next to lifting system, PLC electric control for safety usage.

Hydraulic Lifter: Customized side lifting device with hydraulic grab, which can be used to lifting up multiple type bins

Wood Cutting Machine: Customized to cut wood, furniture, paper, tree, etc.

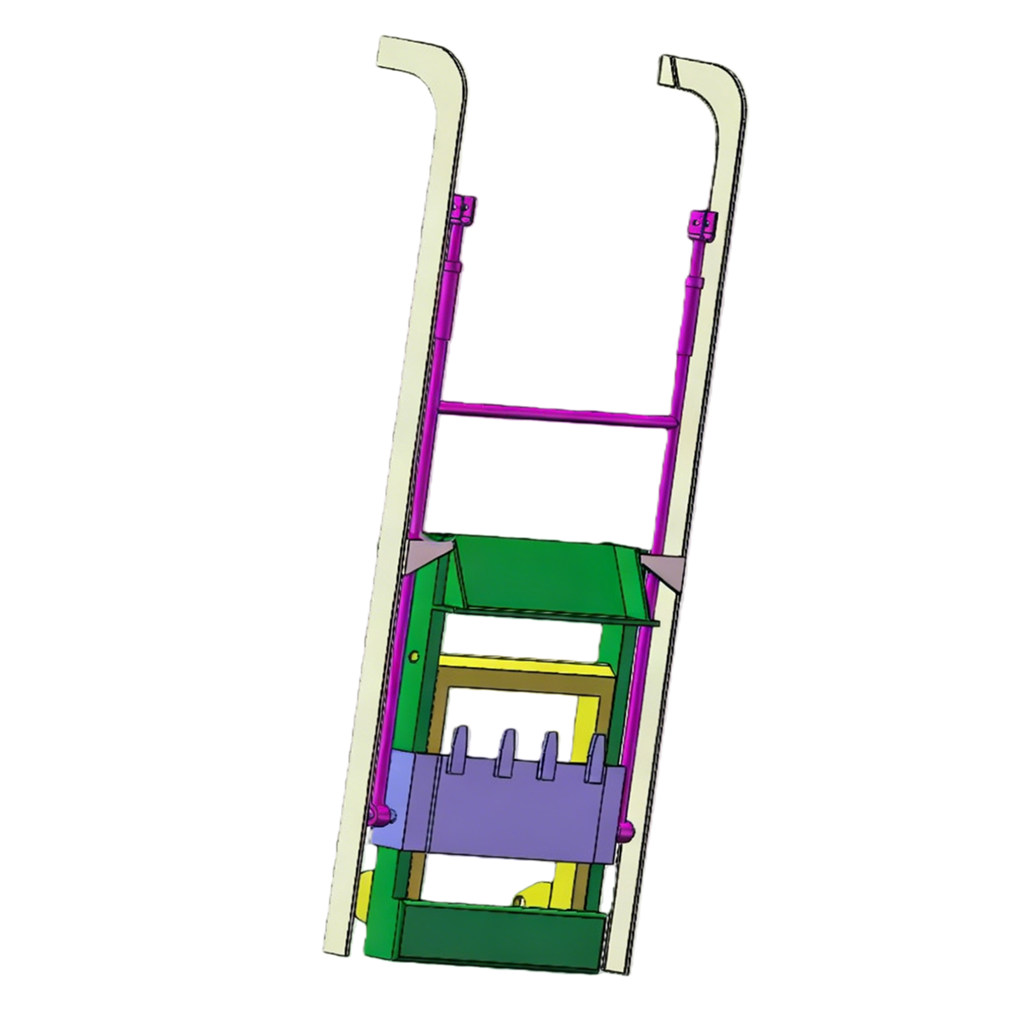

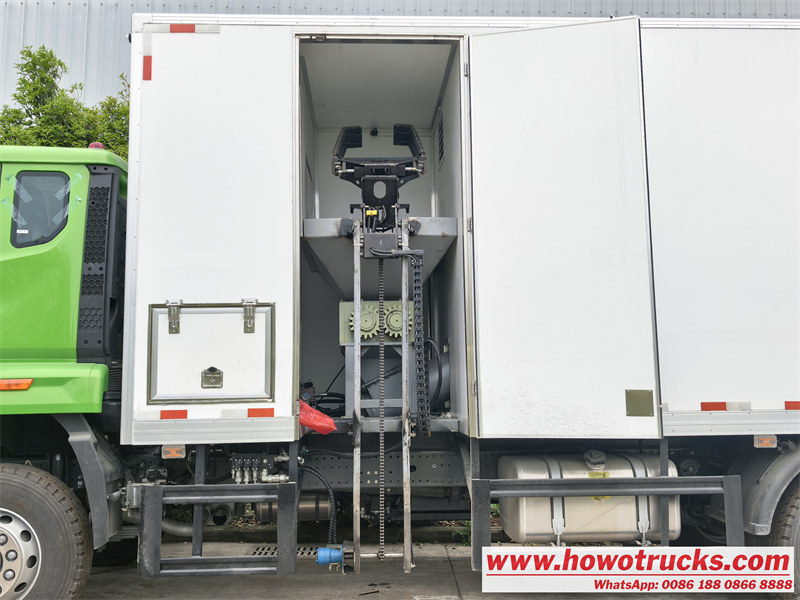

Side lifting device

Side lifting device with customized grab, which used for hydraulic lifting multiple type garbage bins. And controlled by Siemens PLC electric box and Hydraulic valve

HOWO 4x2 wood cutting collection truck

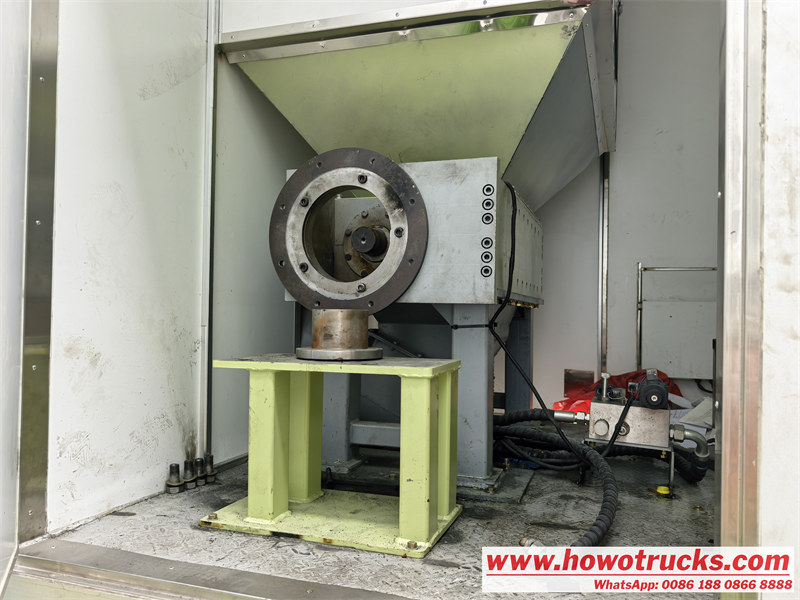

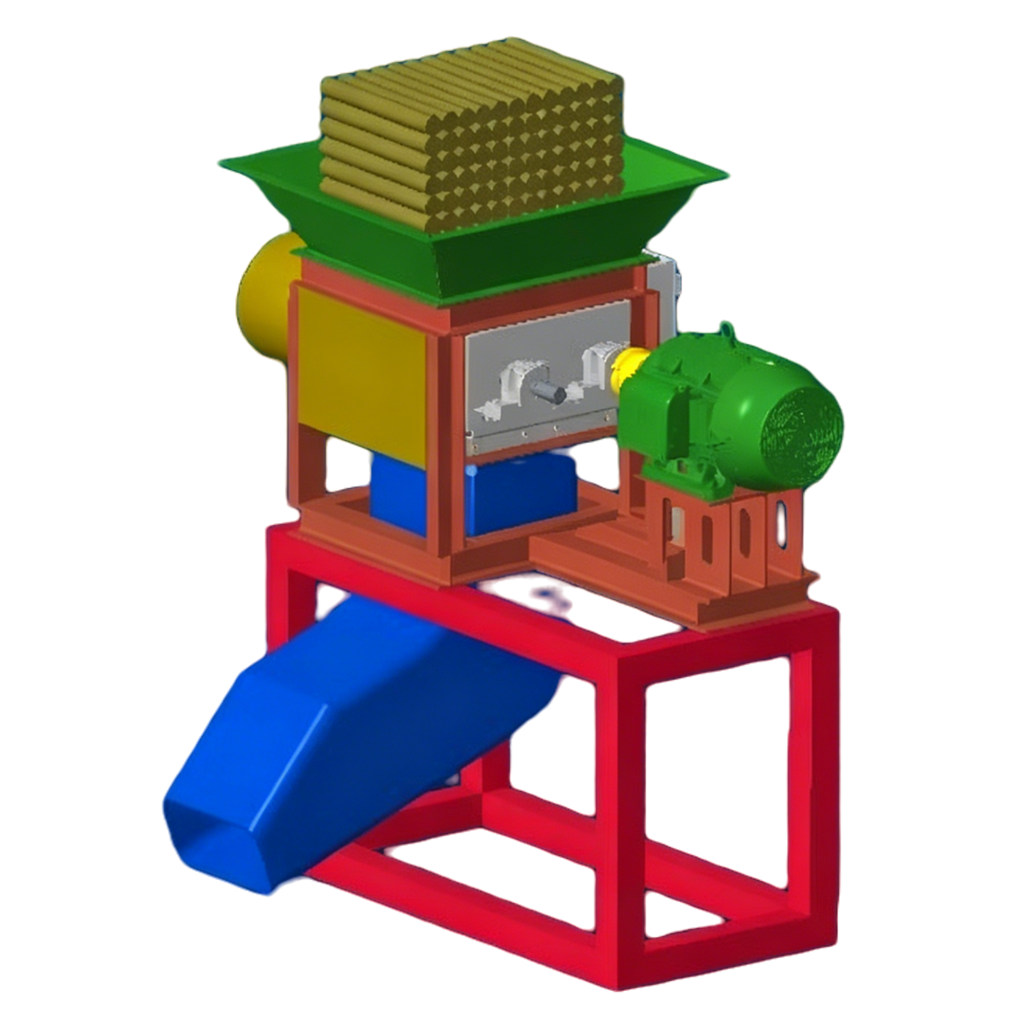

Wood cutting machine
Model Wooden cutting machine
Power 5.5-11kW single motor or dual- motor
Blade Speed 10-16 rpm
Blade Model 15-30mm, claw-shaped alloy steel blade
Inlet Size ≤400*400mm
Discharge Speed 20-100mm, adjustable
Working Capacity 0.5-2 tons per hour

Wooden cutting machine





✦  Ⅲ. Product Advantage and Features:

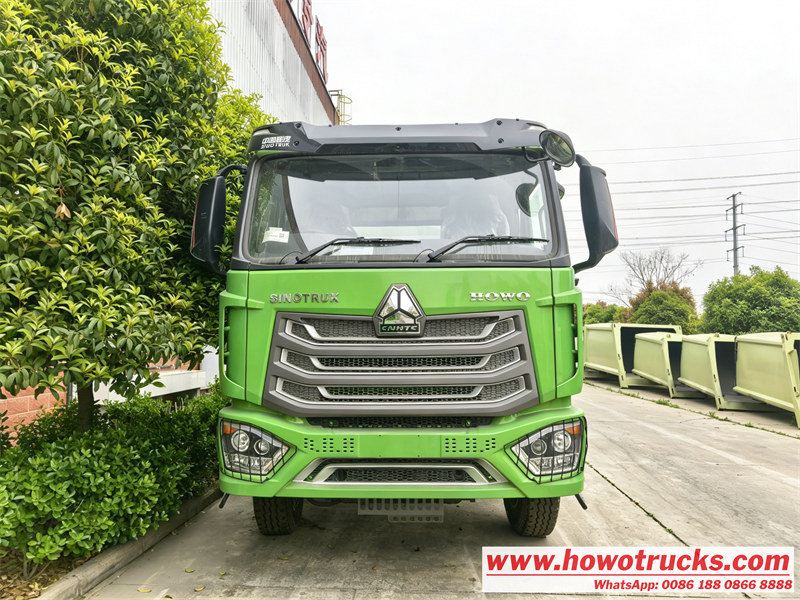

  • HOWO NX truck cabinet
    HOWO NX truck cabinet

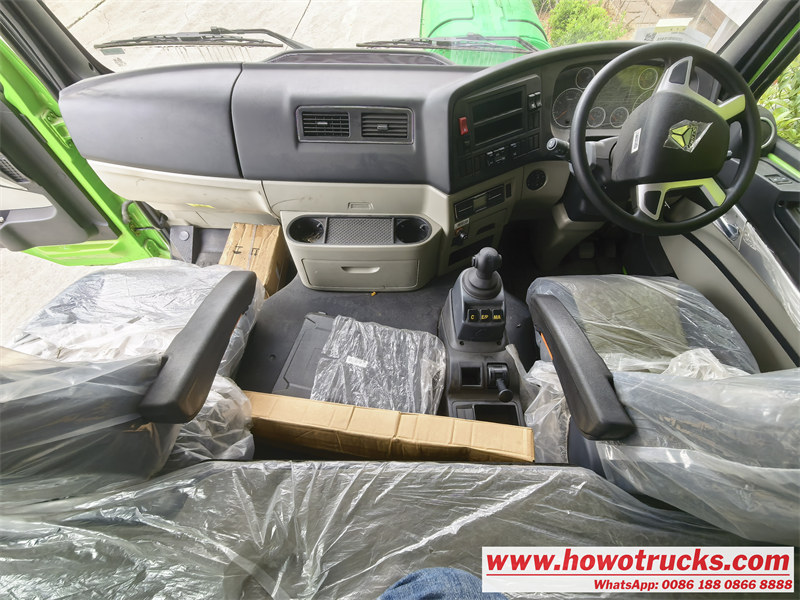

  • HOWO NX truck with RHD model
    HOWO NX truck with RHD model

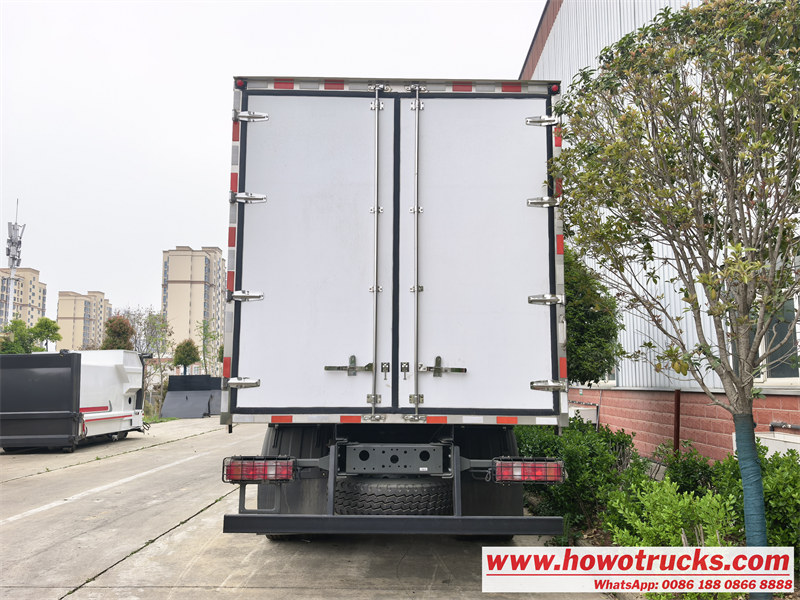

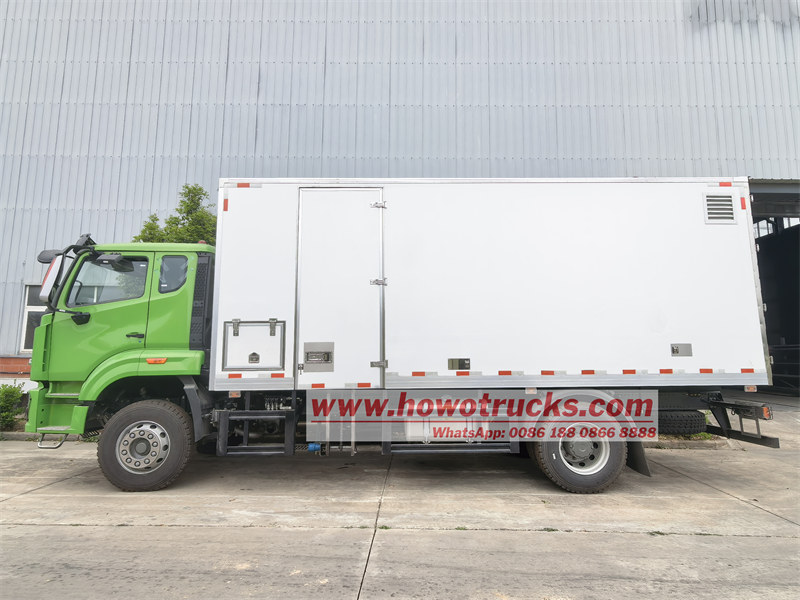

  • Rear cargo box
    Rear cargo box

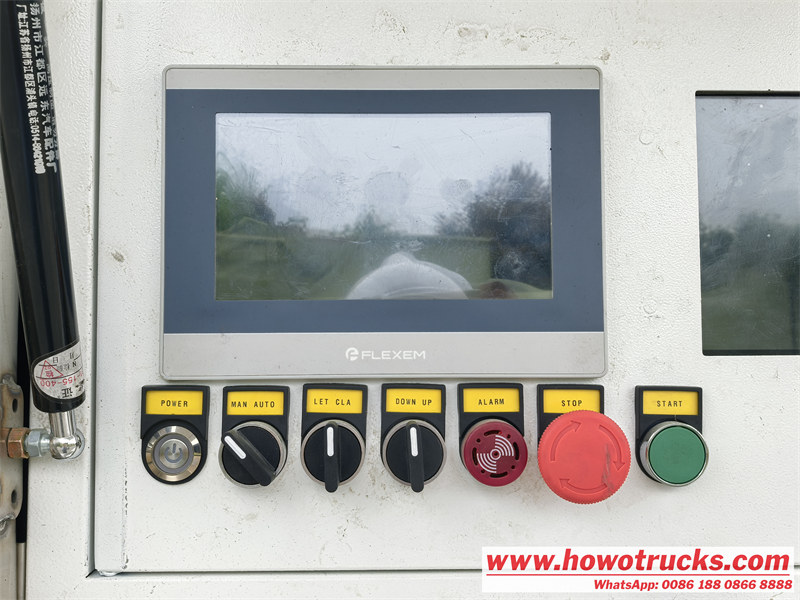

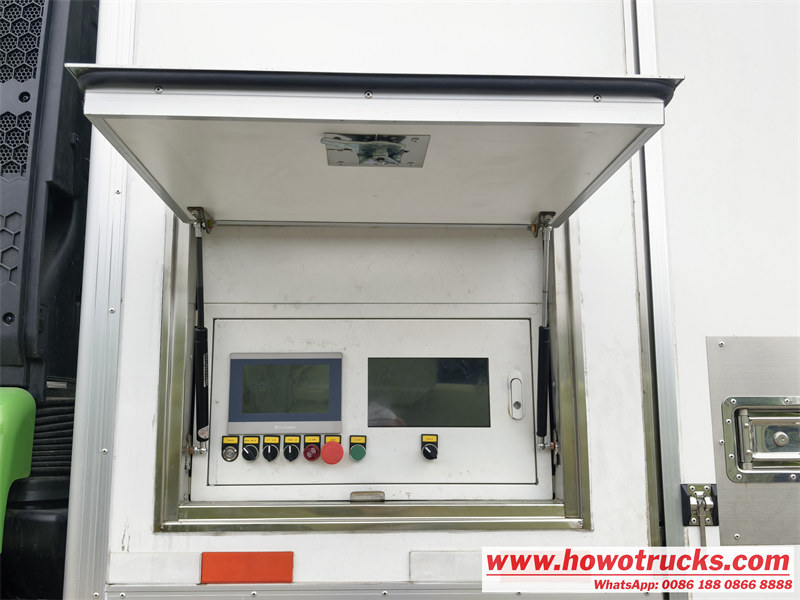

  • Integrated PLC control box
    Integrated PLC control box

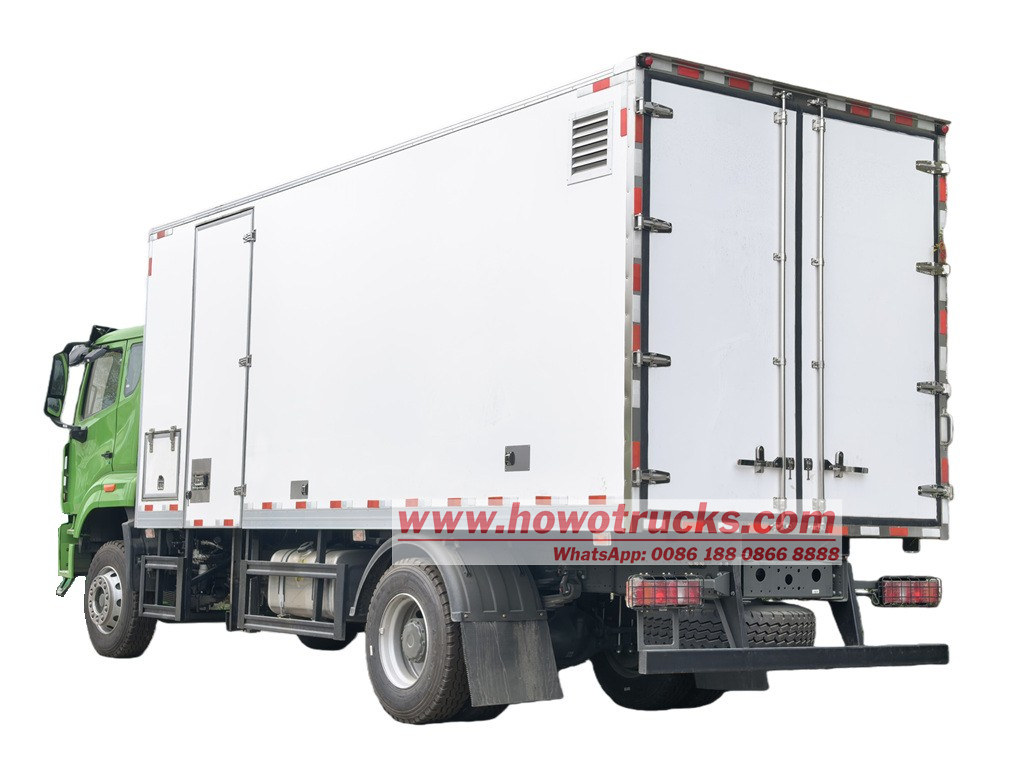

  • HOWO cargo truck with cutting machine
    HOWO cargo truck with cutting machine

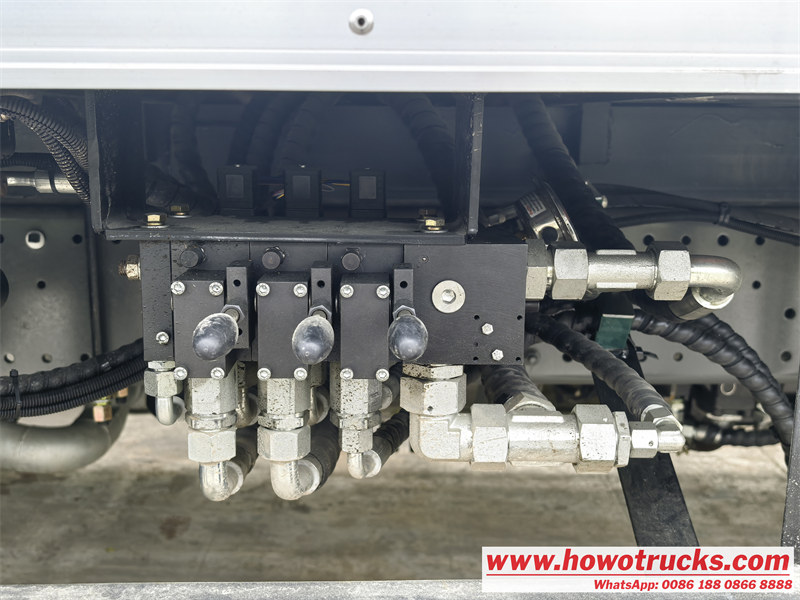

  • CE certify hydraulic control valve
    CE certify hydraulic control valve




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

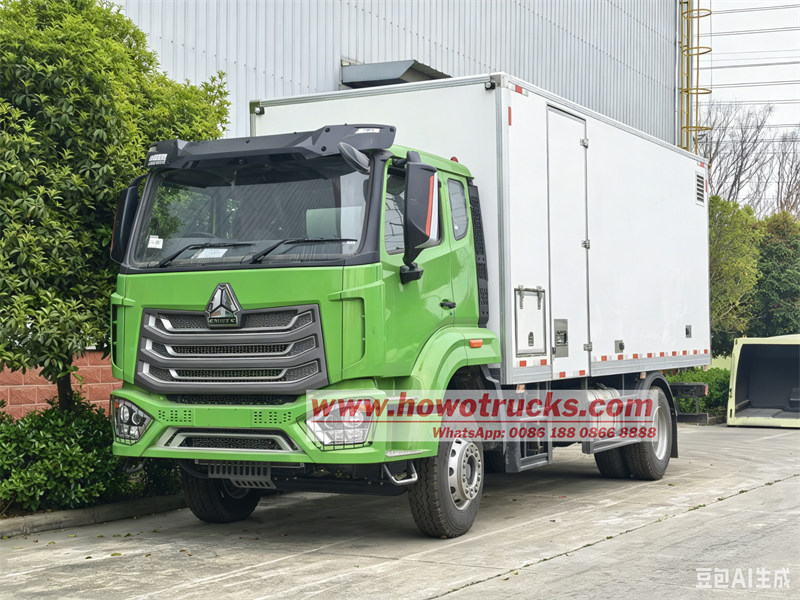

HOWO NX tree cutting lorry truck

SINOTRUK HOWO NX wood cutting cargo truck for export

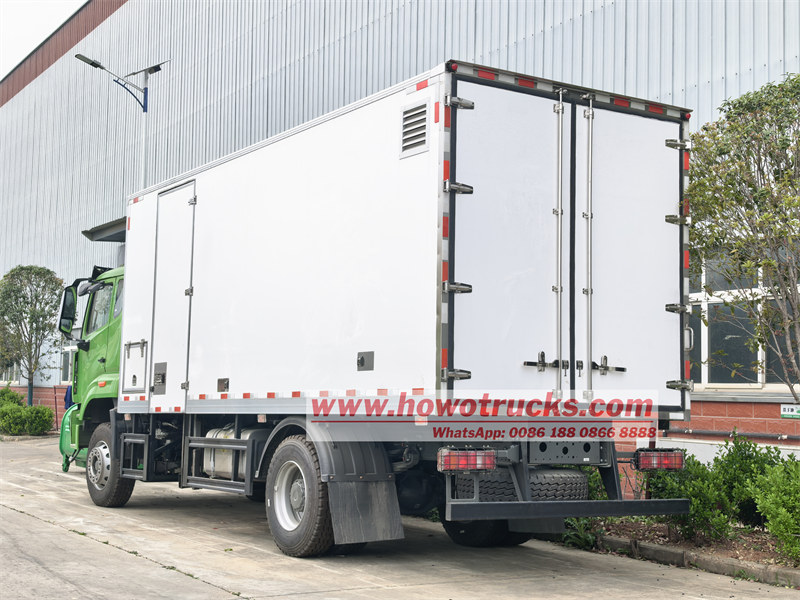

SINOTRUK HOWO cargo truck for export

SINOTRUK HOWO cargo truck ready for delivery
