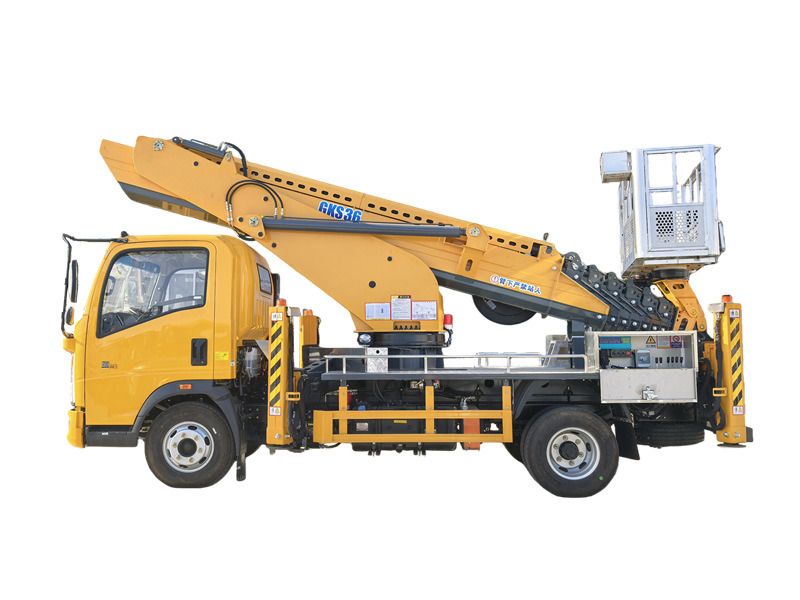

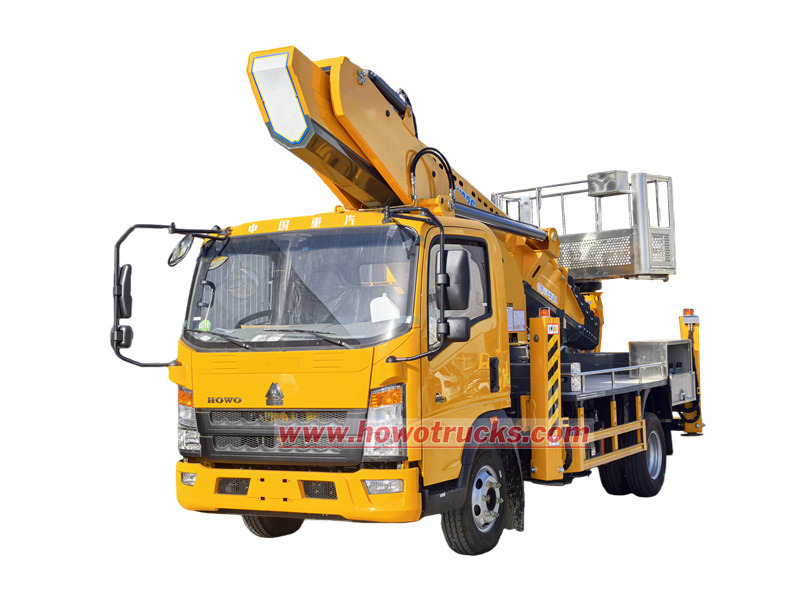

Everything you need to know about HOWO telescopic aerial work platform truck

▲ What is the HOWO telescopic aerial work platform truck?

The HOWO telescopic aerial work platform truck, also known as HOWO truck mounted aerial work platform, HOWO bucket lift  truck, HOWO manlift truck, is a special engineering vehicle based on the HOWO 4×2 light truck chassis and equipped with a telescopic boom aerial work platform. It is mainly used for high-altitude operations such as construction, advertising installation, power line maintenance, and garden trimming.

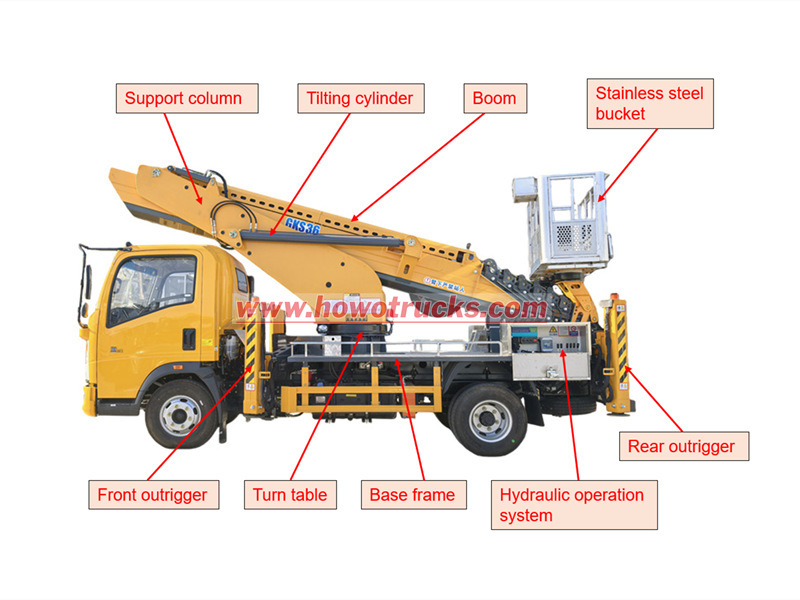

▲ HOWO manlift truck structure:

The HOWO telescopic boom manlift truck mainly consists of a chassis, a slewing mechanism, a lifting mechanism, a working platform, outriggers, and a control system. The specific structure is shown in the figure below:

▲ Features of HOWO Telescopic Bucket Lift Truck:

1. 7-section boom with 6 sections synchronously telescoping. Adopts 16-sided high-strength steel, offering high strength and light weight.

2. Maximum working height: 33m; Maximum working radius: 18m; Platform rated load: 200kg.

3. Front V-shape and rear V-shape hydraulic outriggers with a longitudinal span of 5800mm and a lateral span of 6100mm. Individually adjustable for strong stability.

4. CAN bus electronic control system equipped with a wireless remote controller with an effective range of approximately 100 meters.

5. Equipped with safety devices such as an emergency power source, bi-directional hydraulic balance valves, and outrigger soft leg protection.

Chassis	HOWO 4×2
Engine	YN4102, 116HP, diesel engine
Max. working height	33 meters
Max. working radius	18 meters
Bucket size	1800×700×1100 mm
Rated load of bucket	200 kg
Rotation angle	360°
Outriggers	X-type, 4 pieces, individually adjustable

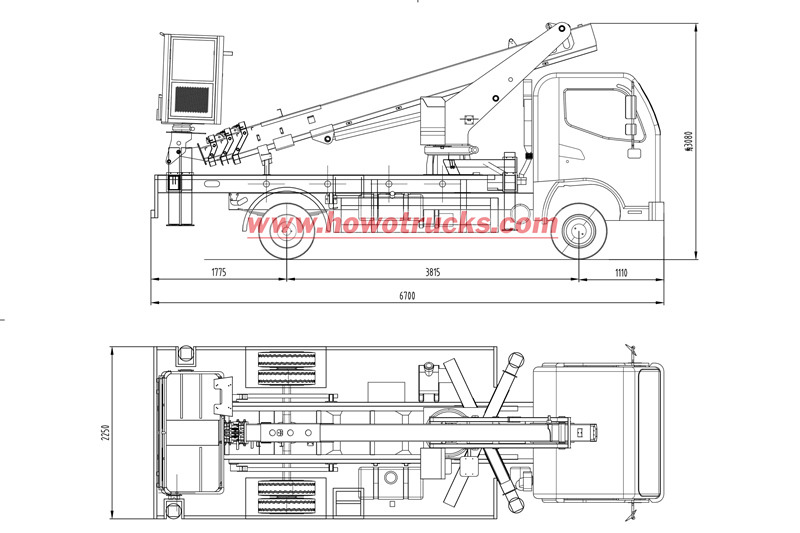

▲ HOWO truck mounted aerial platform technical drawing:

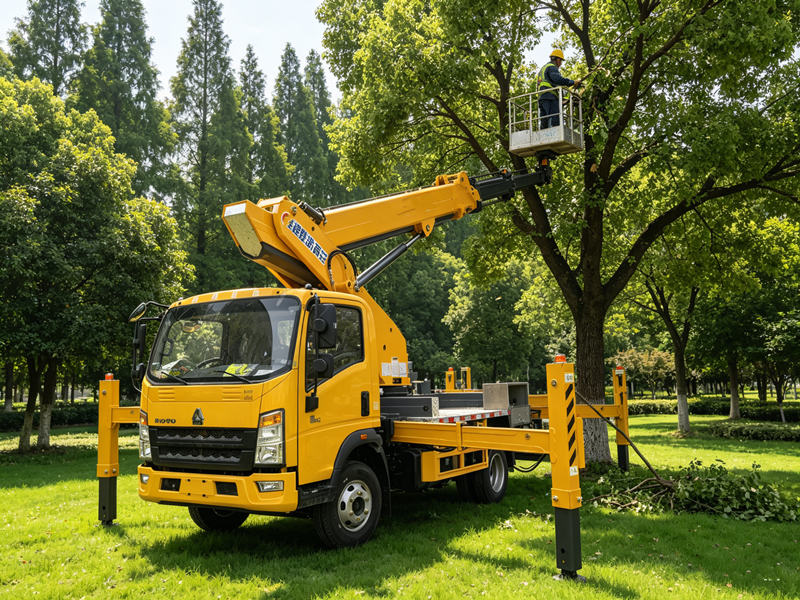

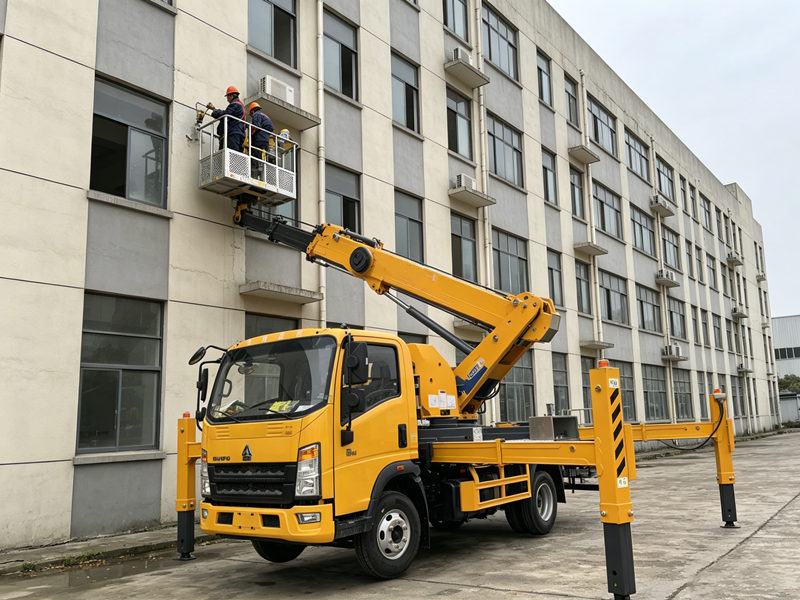

▲ HOWO aerial work bucket truck application areas:

● Municipal Engineering: Streetlights, traffic facilities, surveillance camera installation and maintenance

● Power and Telecommunications: Line erection, base station antenna maintenance

● Building Construction: Exterior wall installation, curtain wall maintenance, aerial equipment installation

● Landscaping and Sanitation: Tree pruning, high-rise property cleaning and maintenance

● Transportation and Bridges: Overpass and tunnel facility maintenance

● Advertising Venues: Billboard and stadium aerial equipment installation and maintenance
