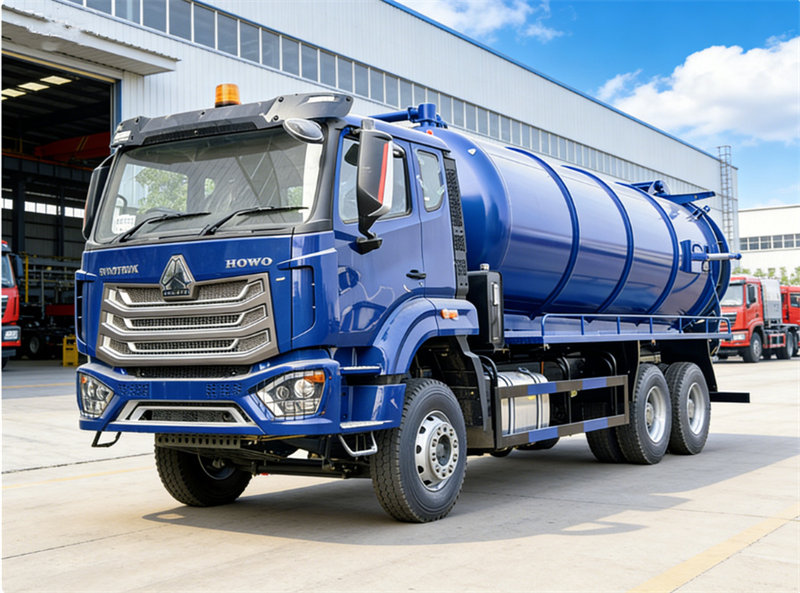

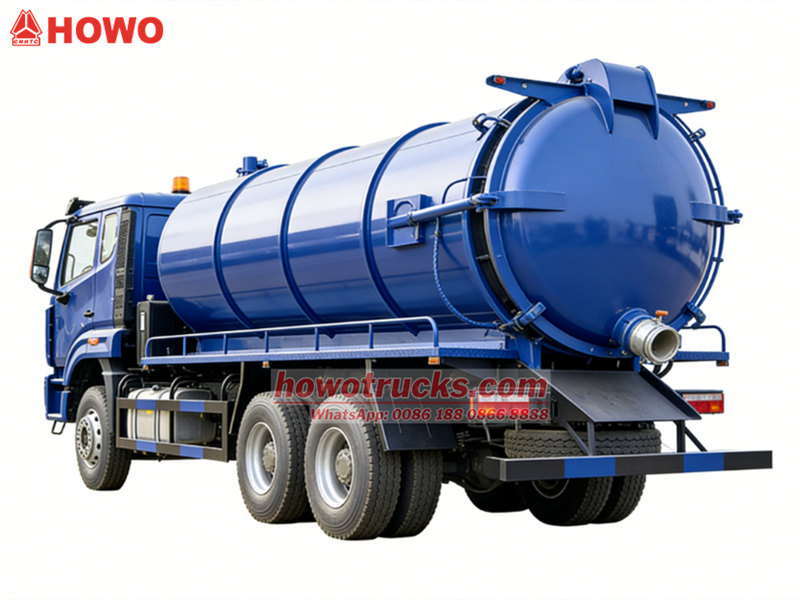

Howo 20 CBM drainage sewer cleaning truck

Howo 20 CBM drainage sewer cleaning truck

The Howo 20 CBM sewer tank truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

  • Kapasidad sa pagtatrabaho :

    20000 liters
  • Uri ng kubin :

    HOWO single cabin with sleeper and A/C
  • Sistema ng pagmamaneho :

    6×4
  • Wheelbase (mm) :

    10300*2580*3250 mm
  • Espesipiko sa makina :

    340HP/WP10.340E22
  • Kahon ng gear :

    HW19710, 10 Forward & 2Reverse
  • Ehe sa harap (Kg) :

    7.5T
  • Ehe sa likuran (Kg) :

    13 T*2
Mga Bagong Produkto

The Howo 20 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

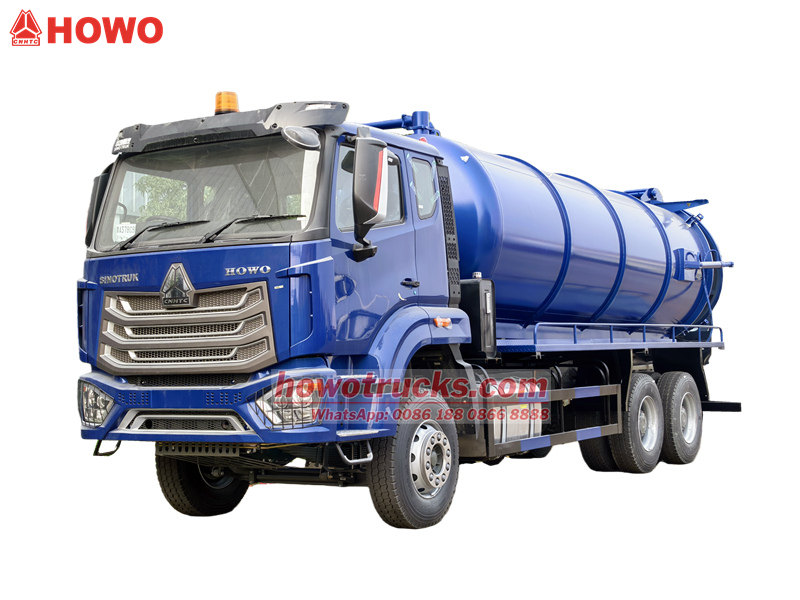

HOWO 6x4 sewage tank truck



*HOWO 6x4 Heavy Sewage Tanker Truck

 SINOTRUK HOWO 20000L Vacuum Sewage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.





Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: Howo heavy truck chassis, 6X4 or 6x6 model

                              WP model with 340HP and Euro 2,3



2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose



3. Vacuum Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
                              Optional famous Imported
pump



Howo 6x4 sewage tank truck



Ⅱ.Parameter for Howo 20000L Vacuum Sewage Tanker «««

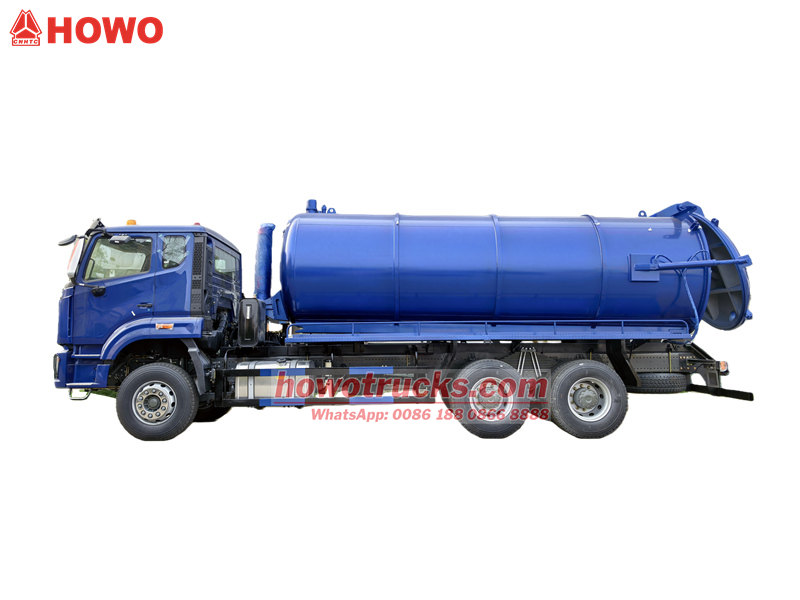

Howo 6x4 heavy sewage tank truck





Howo heavy 20000L sewage tanker truck

Vehicle Description

Overall dimensions

8600*2350*3360mm

GVW

25000kg

Curb weight

9850kg

Sewage tank (m3)

20

Drive system

6*4

Chassis Description

Chassis brand

Howo

Steering

LHD

Cab

Howo,single row, 2 seats,with A/C

Wheelbase

4600+1350 mm

Tire specification

12.00 R20

Tire quantity

10 tires and 1 spare tire

Engine

Engine model

WP10.340E22

Emission level

EURO 2

Displacement

9.8 L

Horse power

340HP

Weight

1365Kg

Fuel

Diesel

Gear box

Model

HW19710

Number of gears

10 speed

Brake system

Air break

Axle

Front

7.5T

Rear

13T*2

Fuel tanker

Type

Stainless steel

Capacity

400L

Tanker Description

Tanker



Capacity

20000 Liters

Material

6mm thickness, high quality carbon steel

Structure

Welding, vacuum tank, Cylindrical

Pump



Type

Water circulation pump

Flux

60 (L/S)

Rating speed

800~1200(r/min)

Shaft power

7(kw)

Features

Low speed, low fuel consumption, low noise, high vacuum, high efficiency

Pipe

Suction and discharge pipe

Special function

Suction time ≤ 3min,

effective suction range ≥ 9,

Max vacuum degree ≤ 18 KPa,

dump angle ≥ 45°

Standard configuration

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.

Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.

Optional configuration

Tanker material: stainless steel.

Vacuum pump : China or Spain vacuum pumps.

Anti-rust coating inside tank

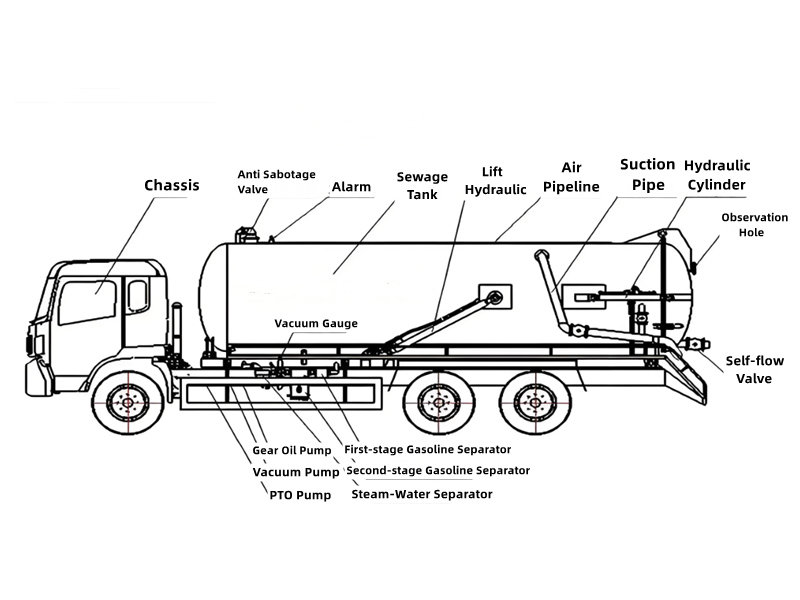

Howo heavy 20CBM vacuum sewage tank truck



Ⅲ.Sewage Tank Manufacturing Process «««

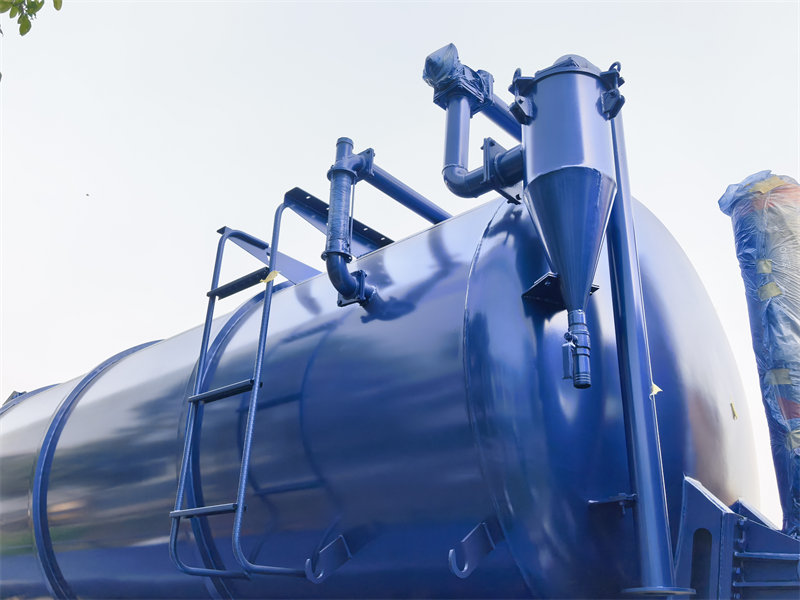

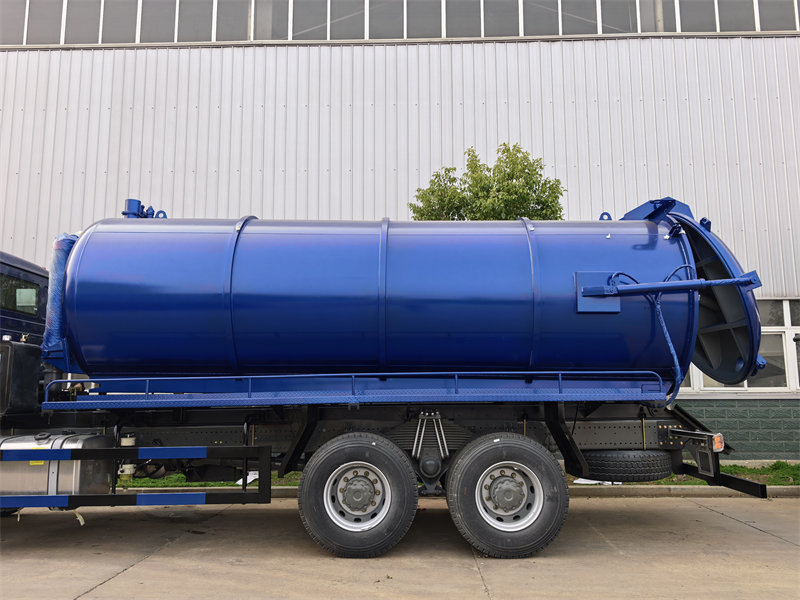

HOWO 20000L sewage tank truck

Steel plates are cut using a fully computerized plasma cutting machine with a cutting accuracy of ±0.1mm, preventing plate deformation.

The end caps are formed using a spin-forming process, resulting in a seamless, one-piece molding process with uniform stress distribution.

A combined robotic automated welding and manual repair welding approach is employed.

Longitudinal and circumferential welds are welded symmetrically by two people simultaneously, maintaining a consistent welding speed and heat input to control welding deformation.



HOWO 20000L sewage tank truck

Welds undergo 100% non-destructive testing, ensuring the absence of defects such as slag inclusions, porosity, cracks, and undercut. Weld strength is no less than that of the base material.



After sandblasting, the entire tank body is coated with an anti-corrosion coating.



The thickness of both the inner and outer coatings meets standards (outer coating 80μm, inner coating 100μm), verified by salt spray testing.



✦Ⅳ.Suction Capacity and Sealing Performance «««

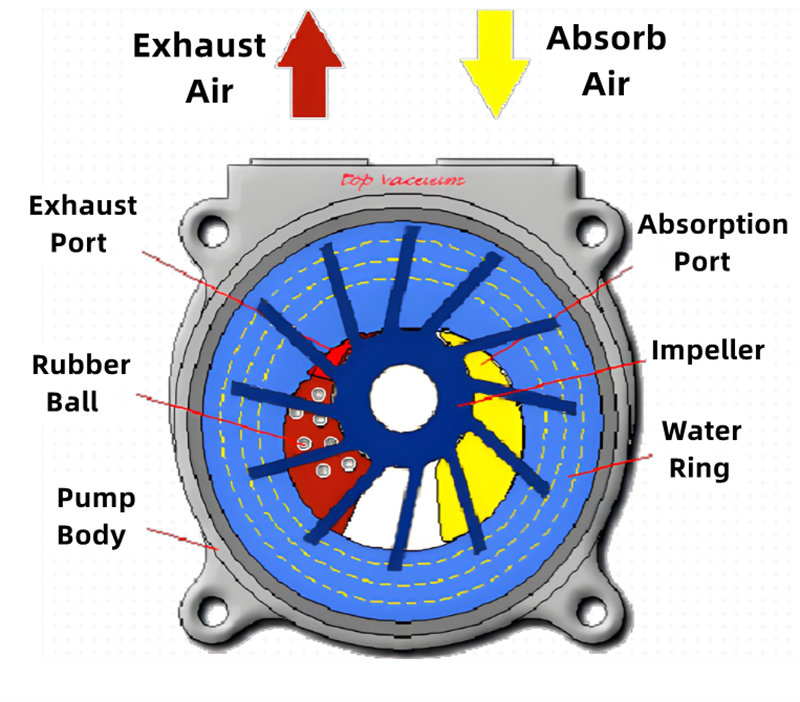

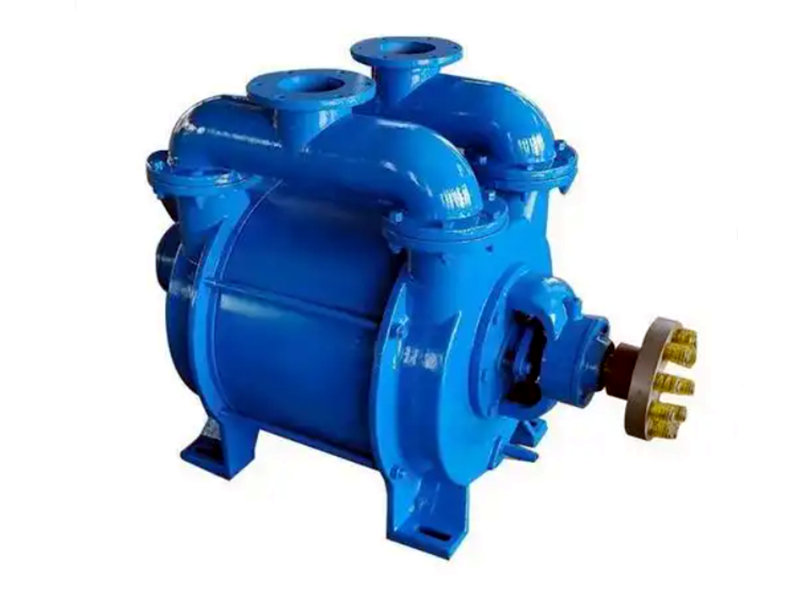

1. Equipped with an SK water-circulating vacuum pump, achieving a vacuum level ≥-0.09MPa, enabling rapid extraction of high-concentration sludge and viscous waste liquids. The vacuum level decreases by no more than 10% within 30 minutes, meeting the needs of high-level waste liquid extraction.

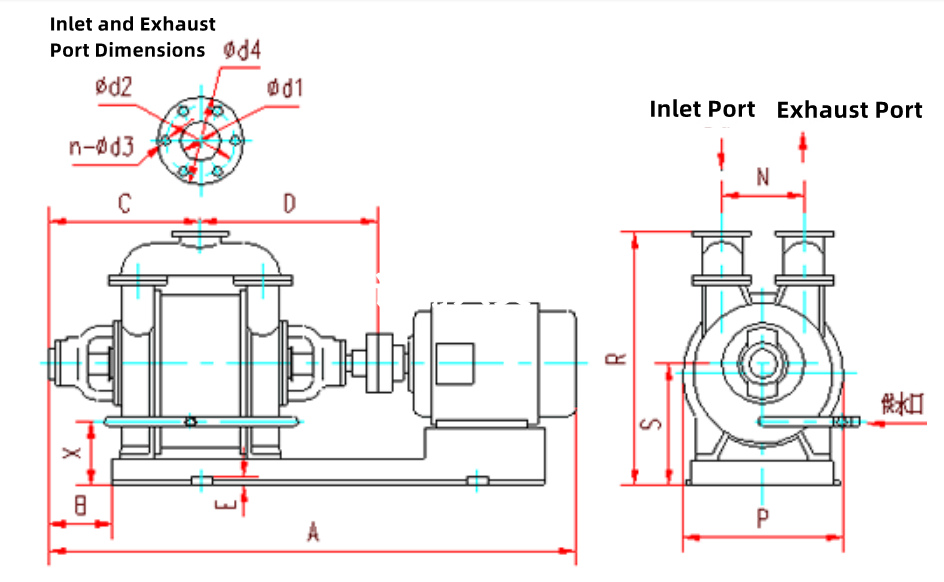

vacuum pump truck





Specification

Unit

Value

Free air capacity

cfm

489

Air capacity at 15" Hg/50% vacuum

cfm

512

Max. Vacuum

Hg (in.)

28

Max. Pressure

psig

29

Power required at 15" of vacuum

hp

20

Power required at max. pressure

hpa

38

Max. speed

rpm

1400

Working speed

rpm

1200

Oil tank capacity

lt

4.8

Oil consumption

Gr/h

210

Sound pressure at 7 meters (23 ft) 60% vacuum

dB

80

Hose

in

3/4

Flange

in

-

Weight

lbs

585



vacuum pump truck



vacuum pump truck



2. The piping system utilizes high-strength, corrosion-resistant materials with an inner wall smoothness Ra≤0.8μm, reducing fluid resistance.

3. Quick-connect fittings achieve an IP67 sealing rating, with a leakage rate of <0.1% at the connection point. It is also equipped with an anti-backflow device and an emergency shut-off system to prevent sewage backflow and secondary pollution.



vacuum pump truck

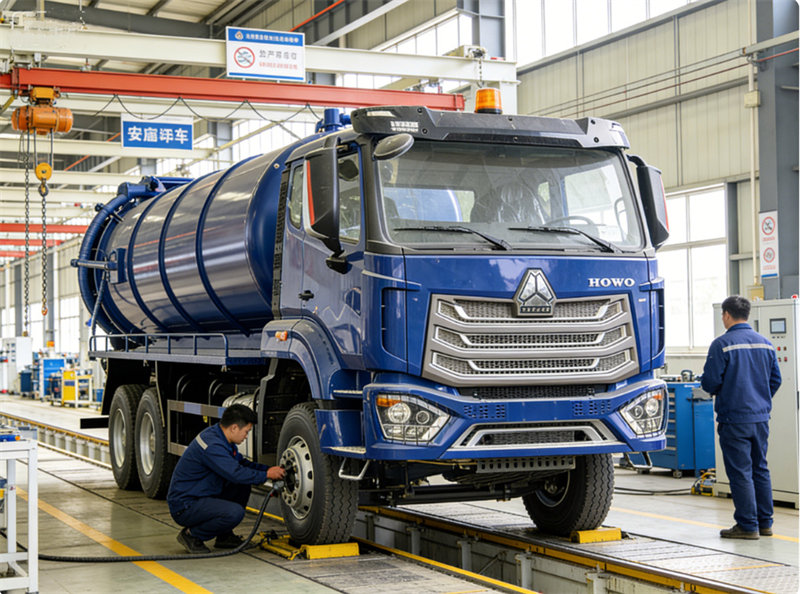

✦Ⅴ.Factory Inspection For Howo Heavy Vacuum Sewage Truck «««



Appearance Inspection: Check tank flatness, coating integrity, and weld quality; no wrinkles, paint peeling, or incomplete welds are allowed.



Howo vacuum sewage tank truck



♦ Performance Testing: Vacuum system test (vacuum degree ≥ -0.09MPa, pressure holding for 20 minutes with no significant drop), hydraulic system test (smooth lifting without jamming, no leakage), unloading test (smooth unloading at 45°, no leakage).



Howo vacuum sewage tank truck



♦ Sealing Test: Tank body pressure stabilized at 80kPa for 5 minutes with no leakage; suction and discharge system pressure held at 15kPa absolute pressure for 20 minutes, leakage rate <0.1%.

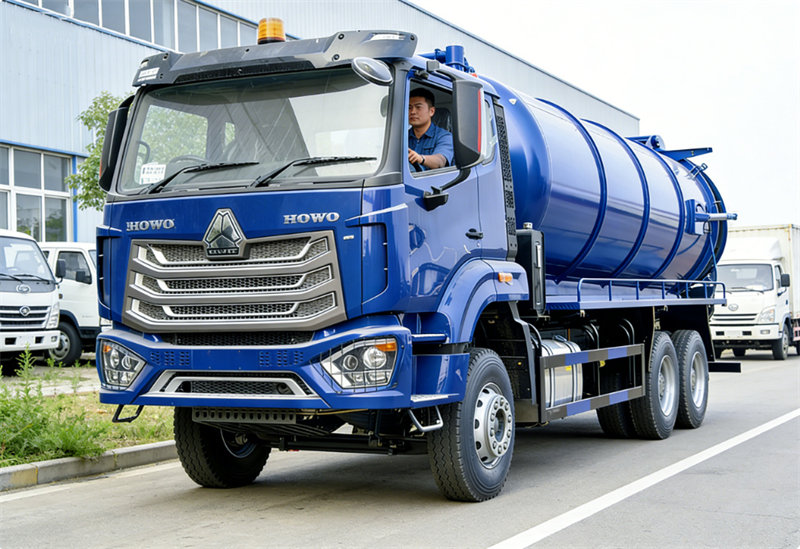

Howo sewage vacuum tank truck






The production capacity of over 4,000 trucks every year.



Over 100 countries worldwide.



Complete after-sales service system.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

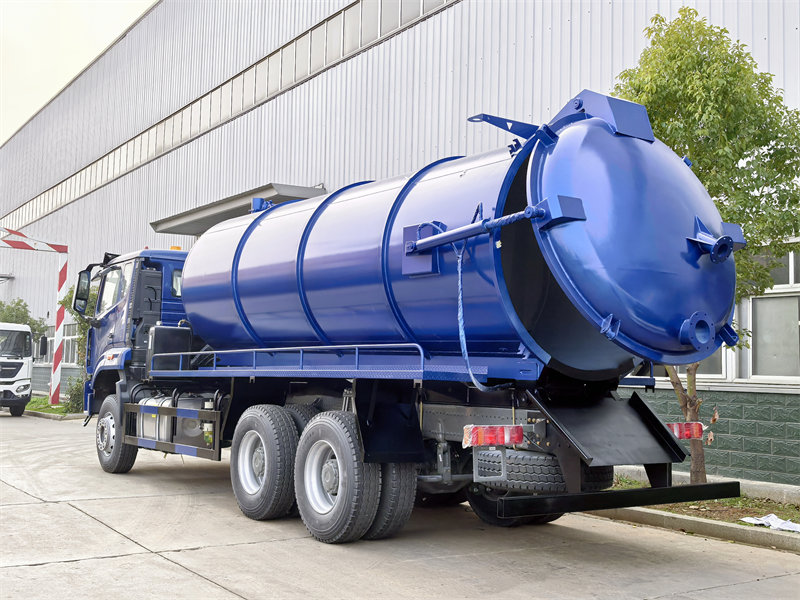

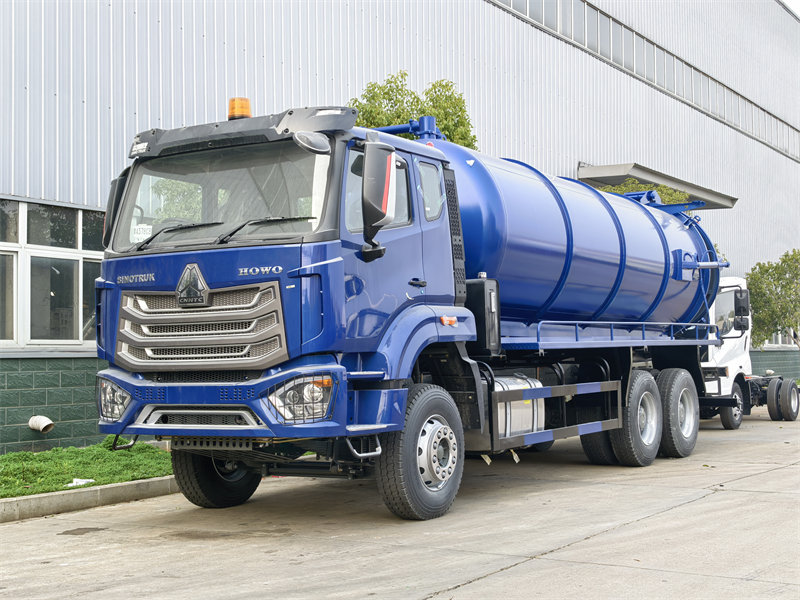

Howo 20000L sewage vacuum tank truck



Howo 20000L sewage vacuum tank truck
