HOWO M7 10000L drainage sewer cleaning truck

HOWO M7 10000L drainage sewer cleaning truck

The HOWO 10 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

  • Kapasidad sa pagtatrabaho :

    10000 liters
  • Uri ng kubin :

    HOWO single cabin with sleeper and A/C
  • Sistema ng pagmamaneho :

    4×2
  • Wheelbase (mm) :

    8300*2580*3250 mm
  • Espesipiko sa makina :

    220HP/YC6J220-33
  • Kahon ng gear :

    HW19710, 10 Forward & 2Reverse
  • Ehe sa harap (Kg) :

    7.5T
  • Ehe sa likuran (Kg) :

    13 T
Mga Bagong Produkto

The HOWO 10 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.



HOWO M7 10000L sewage tank truck



*HOWO M7 220HP Sewage Tanker Truck

 SINOTRUK HOWO 10000L Vacuum Sewage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.





Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: HOWO heavy truck chassis, 4X2 or 4x4 model

                              YC model with 220HP and Euro 2,3



2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose



3. Vacuum Pump: China TOP water pump, flow rate 40L/s, working distance over 40m
                              Optional famous Imported
pump

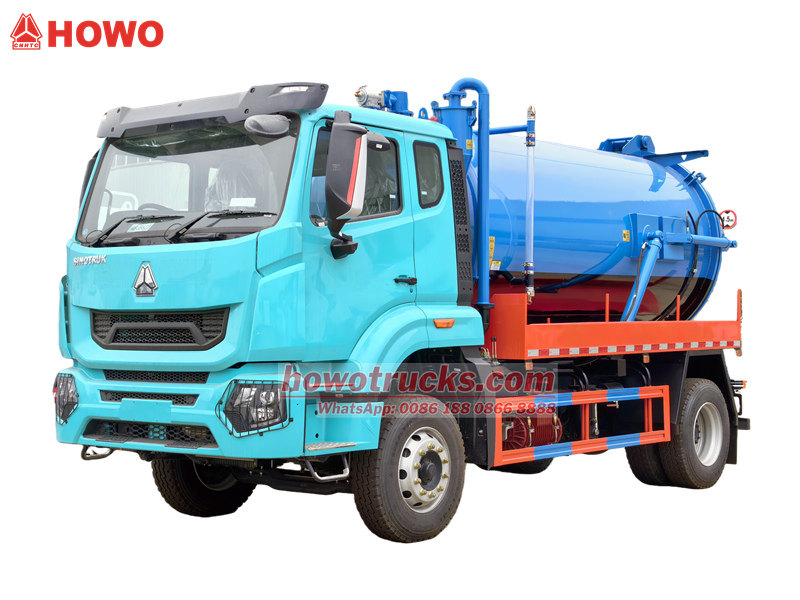

HOWO M7 10000L sewage tank truck



Ⅱ.Parameter for Howo Vacuum Suction Pump Truck «««



HOWO M7 10000L sewage tank truck



Howo M7 10000L Sewage Tanker Truck

Vehicle Description

Overall dimensions

10600*2550*3360mm

GVW

18000kg

Curb weight

7850kg

Sewage tank (m3)

10

Drive system

4*2

Chassis Description

Chassis brand

HOWO

Steering

LHD

Cab

HOWO,single row, 2 seats,with A/C

Wheelbase

4600 mm

Tire specification

10.00 R20

Tire quantity

6 tires and 1 spare tire

Engine

Engine model

YC6J220-33

Emission level

EURO 2

Displacement

6.5 L

Horse power

220 HP

Weight

1065 Kg

Fuel

Diesel

Gear box

Model

HW19710

Number of gears

10 speed

Brake system

Air break

Axle

Front

7.5T

Rear

13T

Fuel tanker

Type

Stainless steel

Capacity

200L

Tanker Description

Tanker



Capacity

10000 Liters

Material

6mm thickness, high quality carbon steel

Structure

Welding, vacuum tank, Cylindrical

Pump



Type

Water circulation pump

Flux

40 (L/S)

Rating speed

800~1200(r/min)

Shaft power

7(kw)

Features

Low speed, low fuel consumption, low noise, high vacuum, high efficiency

Pipe

Suction and discharge pipe

Special function

Suction time ≤ 3min,

effective suction range ≥ 9,

Max vacuum degree ≤ 18 KPa,

dump angle ≥ 45°

Standard configuration

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.

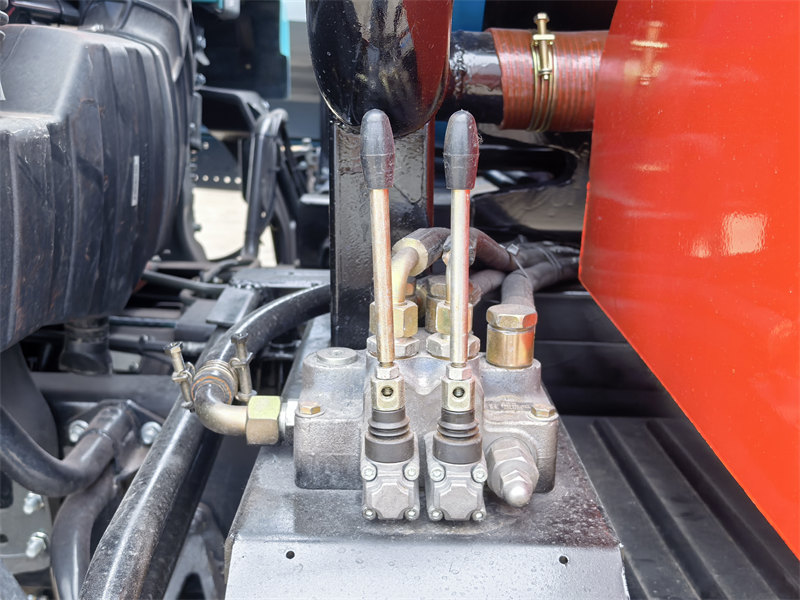

Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.

Optional configuration

Tanker material: stainless steel.

Vacuum pump : China or Spain vacuum pumps.

Anti-rust coating inside tank

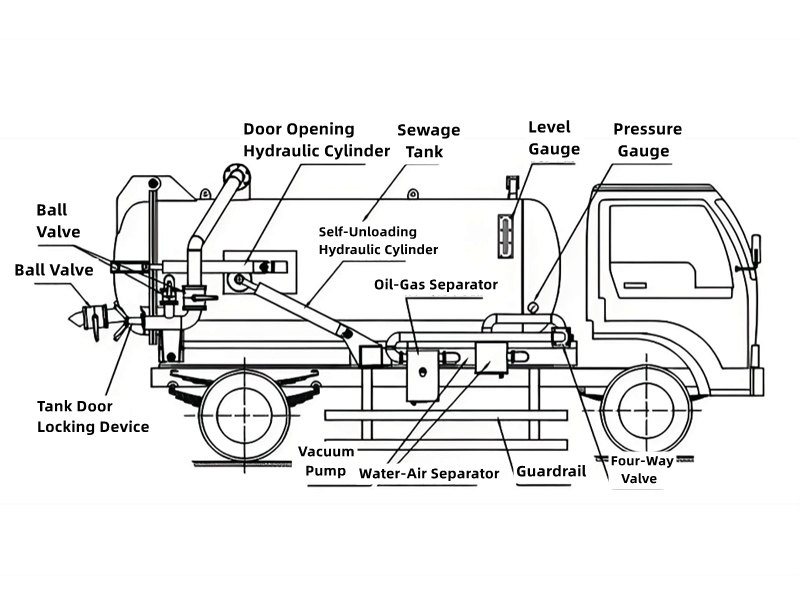

Howo heavy 10CBM vacuum sewage tank truck



Ⅲ.Sewage Tank Manufacturing Feature «««

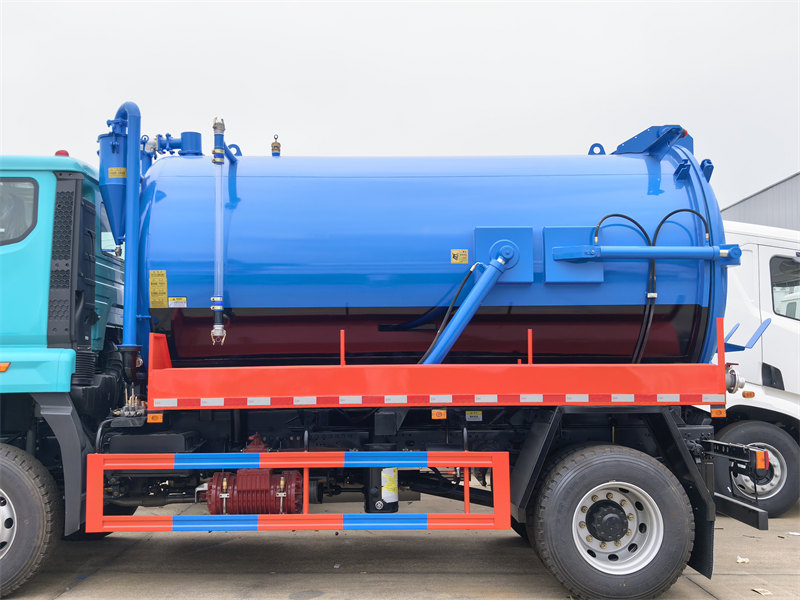

HOWO 10000L sewage tank truck

Tank Manufacturing Process:

1. High-Precision Cutting: Computer-controlled plasma cutting, accuracy ±0.1mm, eliminating plate deformation.

2. High-Quality End Cap Process: Spin-forming integral molding, no splicing, uniform stress distribution.

3. Precision Welding: Robotic automatic welding + manual precision repair, two-person symmetrical synchronous welding, strict control of welding deformation.

4. Rigorous Flaw Detection: 100% non-destructive testing of welds, no welding defects, strength matching the base material.

5. Strong Corrosion Protection: Overall sandblasting treatment, internal and external anti-corrosion coating thickness meets standards, resistant to salt spray and corrosion.



HOWO 10000L sewage tank truck

System Assembly Process:

1. Piping Pre-treatment: Cleaning and pressure testing before assembly, clean and free of impurities, leak-free throughout.

2. Organized Layout: Scientific and stable pipeline layout, does not interfere with moving parts.

3. Precise Electrical Control: Accurate instrument sensor positioning, standardized wiring, stable signal transmission, eliminating false faults.



✦Ⅳ.Suction Capacity and Sealing Performance «««



1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

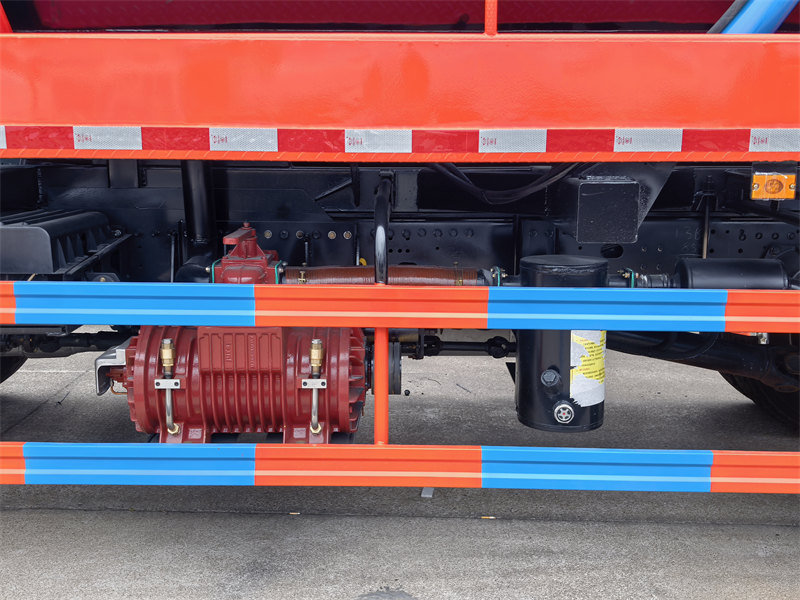

vacuum pump truck

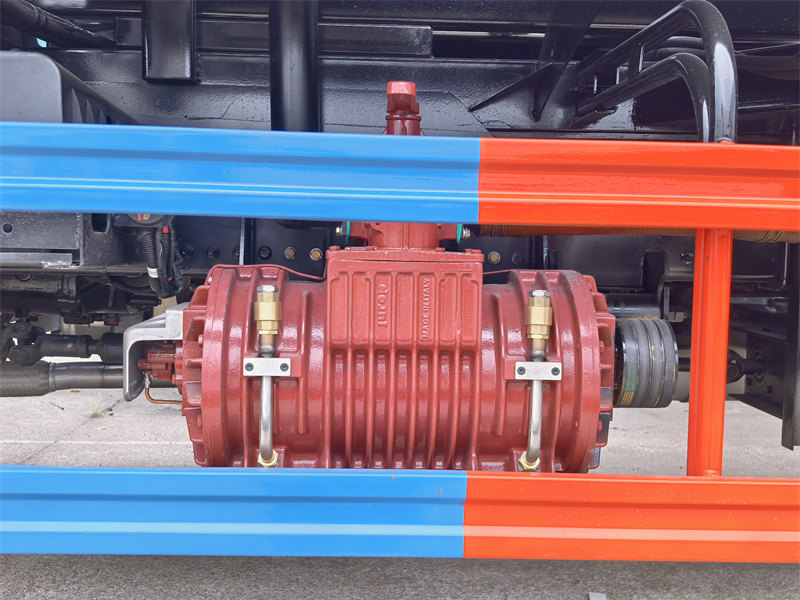

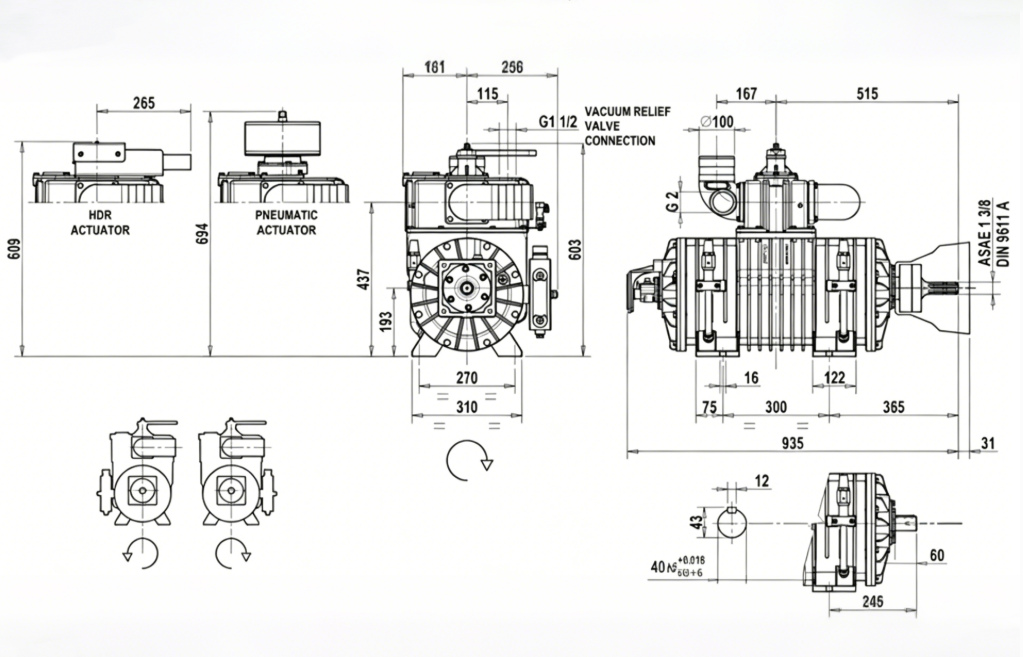

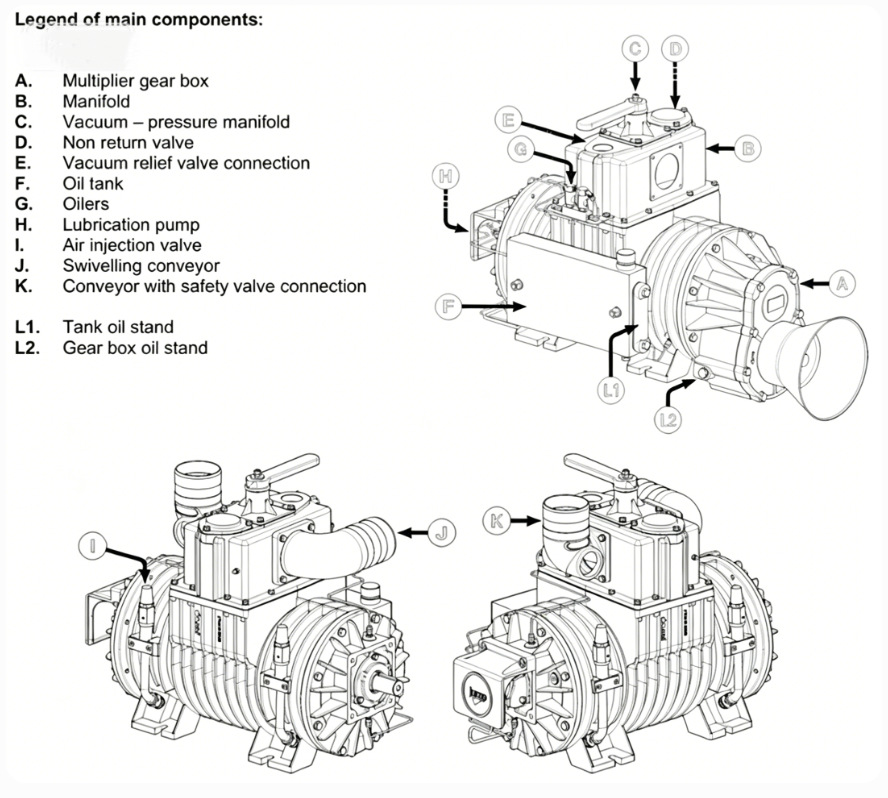

JUROP (PNR 155D) rotary vacuum pump

Specification

Unit

Value

Free air capacity

cfm

424

Air capacity at 15" Hg/50% vacuum

cfm

312

Max. Vacuum

Hg (in.)

28

Continuous Duty Vacuum

Hg (in.)

18

Max. Pressure

psig

29

Power required at 15" of vacuum

hp

15.5

Power required at max. pressure

hp

41

Rotation speed

rpm

1150

Oil tank capacity

quart(us)

4

Suggested Tank Size

Gallons

1000-4000

Oil consumption

gal (US)/Hr

0.05

Sound pressure at 7 meters (23 ft) 60% vacuum

dB

79

Hose

in

3

Flange

in

-

Weight

lbs

357



vacuum pump truck

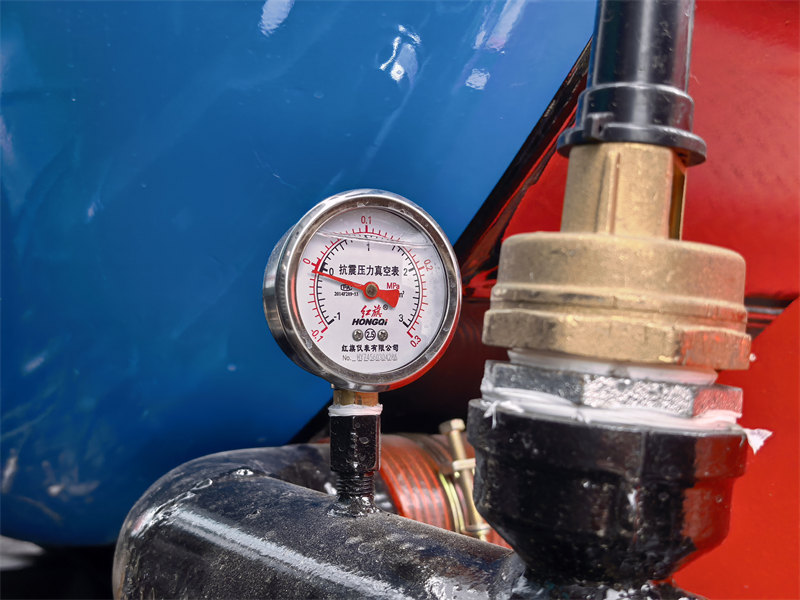

  • HOWO vacuum pump sewage truck
  • HOWO vacuum pump sewage truck
  • HOWO vacuum pump sewage truck

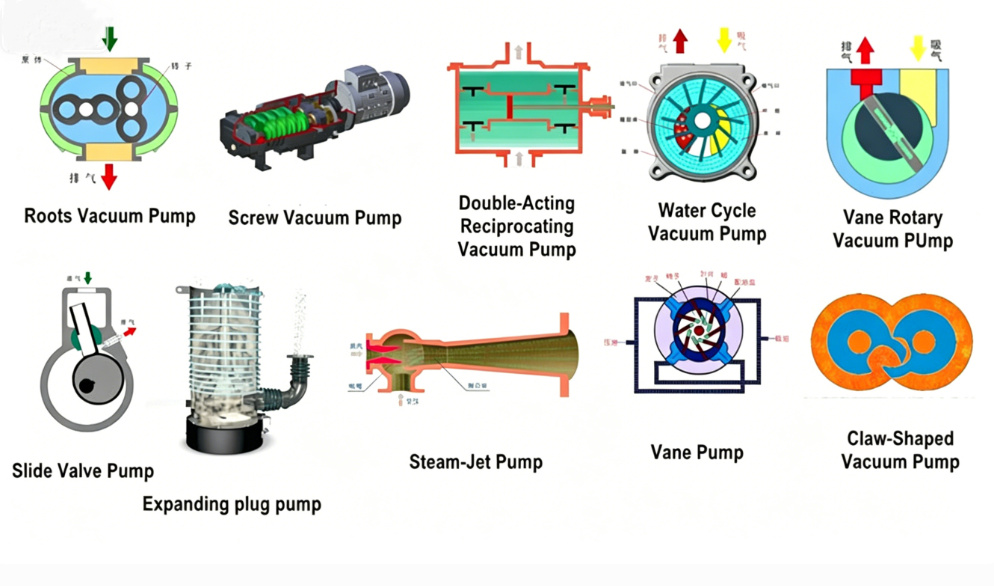

HOWO M7 sewage tank truck



HOWO M7 sewage tank truck



HOWO M7 sewage tank truck



✦Ⅴ.Factory Inspection HOWO M7 Sewage Tank Truck «««



Appearance Inspection: Check tank flatness, coating integrity, and weld quality; no wrinkles, paint peeling, or incomplete welds are allowed.

Performance Testing: Vacuum system test (vacuum degree -0.09MPa, pressure holding for 20 minutes with no significant drop), hydraulic system test (smooth lifting without jamming, no leakage), unloading test (smooth unloading at 45°, no leakage).

Sealing Test: Tank body pressure stabilized at 80kPa for 5 minutes with no leakage; suction and discharge system pressure held at 15kPa absolute pressure for 20 minutes, leakage rate <0.1%.

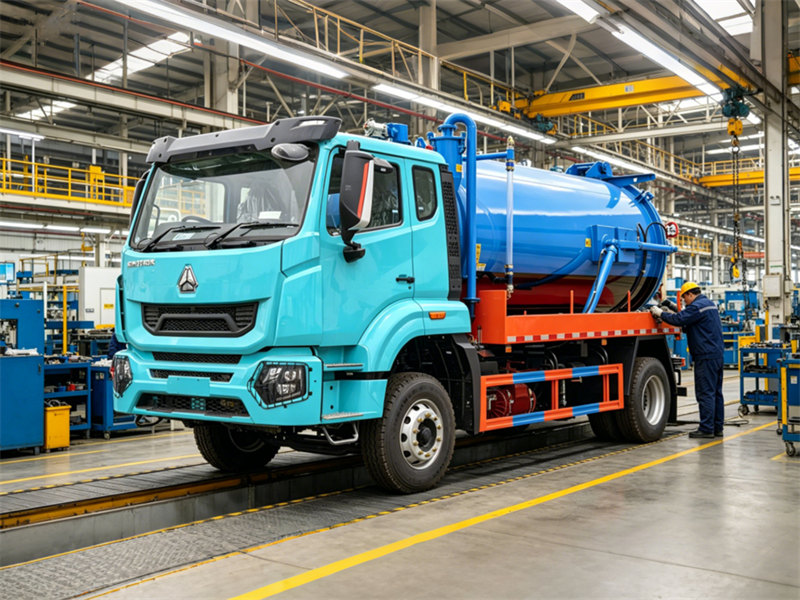

HOWO M7 vacuum sewage tank truck






The production capacity of over 4,000 trucks every year.



Over 100 countries worldwide.



Complete after-sales service system.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional Howo special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

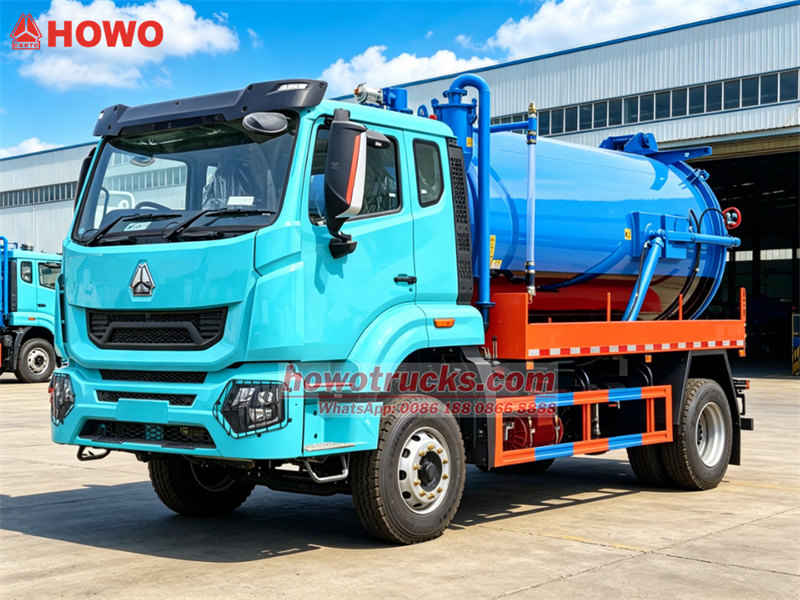

HOWO 10000L sewage vacuum tank truck



Howo 10000L sewage vacuum tank truck
