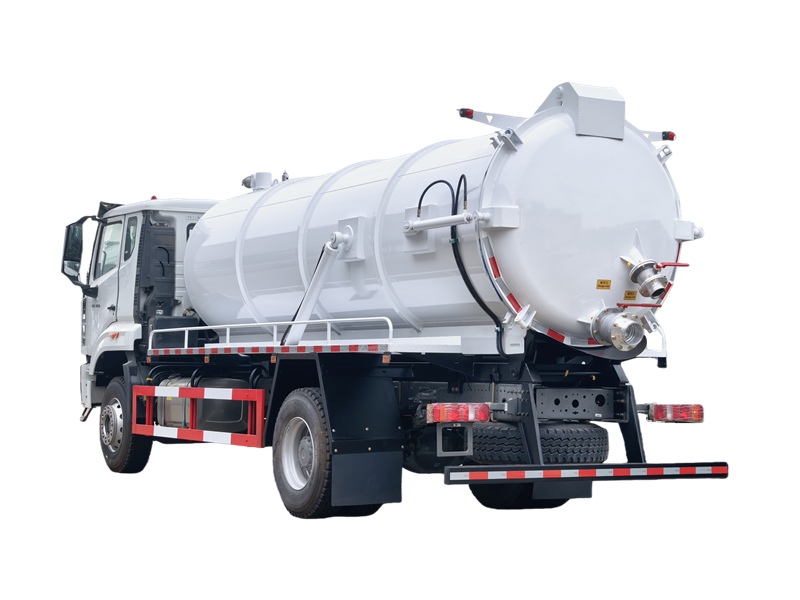

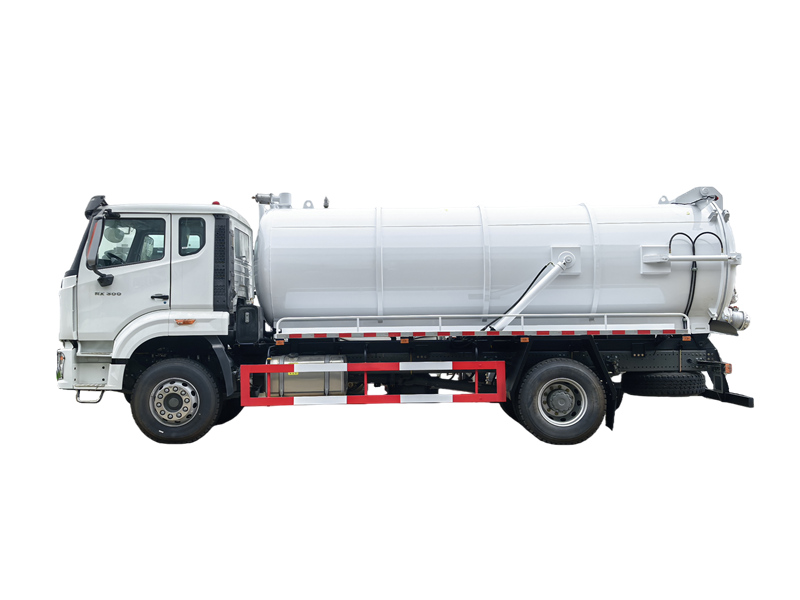

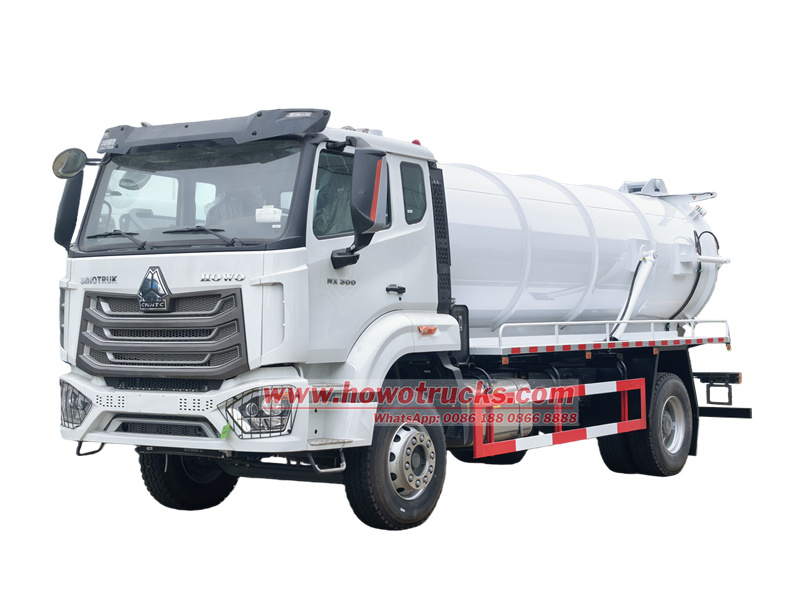

The HOWO 12,000-liter vacuum tank pump truck is a special-purpose sanitation vehicle designed for the collection and transport of sewage, sludge, and fecal matter. It is built on a Sinotruk HOWO chassis, powered by a Weichai 300 HP engine, and equipped with a Jurop high-flow vacuum pump. The tank has an effective volume of 12 cubic meters. The truck supports both vacuum suction and pressure discharge functions, with a tilting tank and openable rear cover for thorough waste removal. It is widely used for urban pipeline unclogging and septic tank cleaning.
Kapasidad sa pagtatrabaho :
12000 litersUri ng kubin :
HOWO NX cabin with sleeper and A/CDimensyon (mm) :
8200*2550*3550 mmSistema ng pagmamaneho :
4×2Wheelbase (mm) :
4600Espesipiko sa makina :
300HP/WP10.300E22Kahon ng gear :
HW19710, 10 Forward & 2ReverseEhe sa harap (Kg) :
7TEhe sa likuran (Kg) :
16 TPaalala :

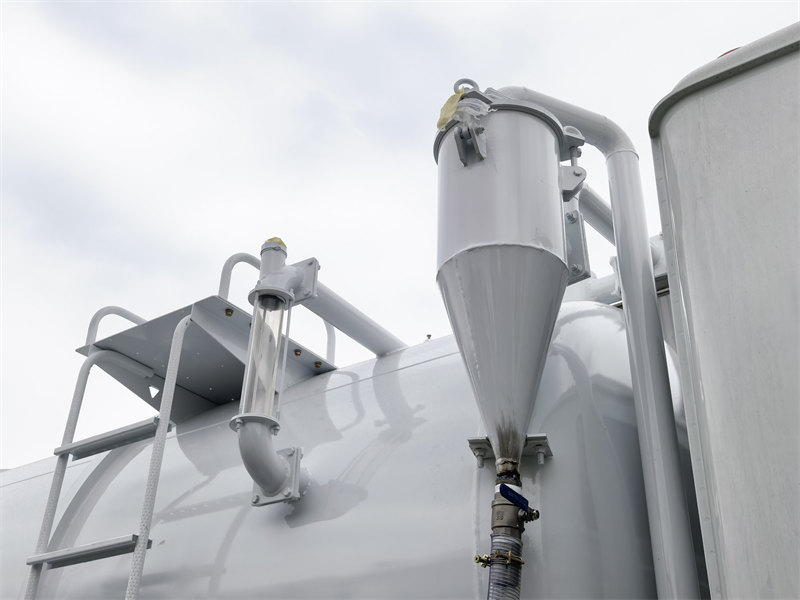

Italy Jurop PN106D vacuum pumpThe HOWO 12,000-liter vacuum septic truck is a specialized sanitation vehicle for the collection, transport, and discharge of liquid or semi-solid waste such as sewage, sludge, and fecal matter. Built on the HOWO NX chassis, it is powered by a Weichai 300 HP engine and equipped with a Jurop high-flow vacuum pump, with a tank effective volume of 12 cubic meters. Its main components include a 12,000L vacuum tank, Jurop vacuum pump, hydraulic system, and suction pipes. The rear cover can be hydraulically opened, and the tank can tilt up to nearly 45 degrees, facilitating complete discharge of solid waste.
This HOWO septic tank pump truck features multi-functionality: it can use the vacuum pump to create negative pressure for sucking waste into the tank, as well as use pressure to quickly empty the tank, ensuring high operational efficiency. The 6-mm thick tank is robust and durable, and the 12000-liter large capacity significantly reduces the number of round trips. It is widely used in urban pipeline dredging, septic tank cleaning, industrial liquid waste transport, and farm waste treatment, making it a reliable helper for municipal sanitation and industrial site cleaning.

CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: HOWO heavy-duty chassis, 4X2 or 4x4 drive, NX new model cabin
WEICHAI 300HP diesel engine, Euro 2, 3
2. Tank material: 6mm thick carbon steel for prolonged service lief
stainless steel is optional
3. Vacuum Pump: Italy imported Jurop vacuum pump, flow rate 10000L/min, max. vacuum up to 92%
MORO pump, BP pump for option

|
SINOTRUK HOWO 12000 liters septic tank pump truck |
||
|
Vehicle Description |
||
|
Overall Dimensions |
8200x2550x3550mm |
|
|
GVW |
18000kg |
|
|
Payload |
12 tons |
|
|
Chassis Brand |
SINOTRUK HOWO |
|
|
Steering |
Left hand drive |
|
|
Chassis Description |
||
|
Chassis Model |
ZZ1187 |
|
|
Cab |

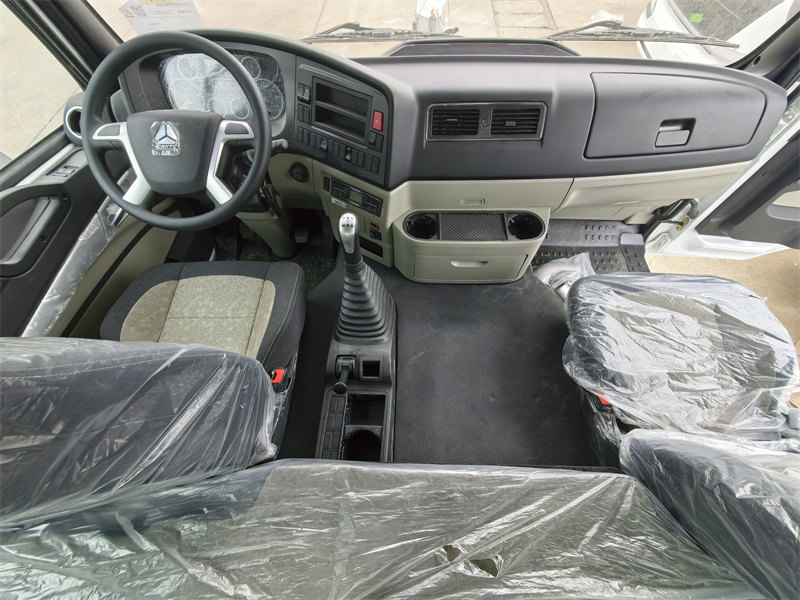

HOWO NX cabin, with A/C, 2 seats and one sleeper |
|
|
Drive Type |
4×2 |
|
|
Wheelbase |
4600mm |
|
|
Tire Specification |
12.00R20 with one spare tyre |
|
|
Tire Quantity |
6+1 units |
|
|
Engine |
Model |
WEICHAI, WP10.300E22 |
|
Type |
6-cylinder inline, 4-stroke, turbocharged and intercooling, directly injection |
|
|
Max. output |
300HP (221kW) |
|
|
Displacement |
9.726L |
|
|
Emission standard |
Euro 2 |
|
|
Rated speed |
1900 rpm |
|
|
Max. torque |
1390 N.m |
|
|
Gear Box |
Model |
HW19710 |
|
Number of gears |
10 forward gears& 2 reverse |
|
|
Brake System |
Full air brake, drum brake |
|
|
Axle |
Front |
7T |
|
Rear |
16T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|

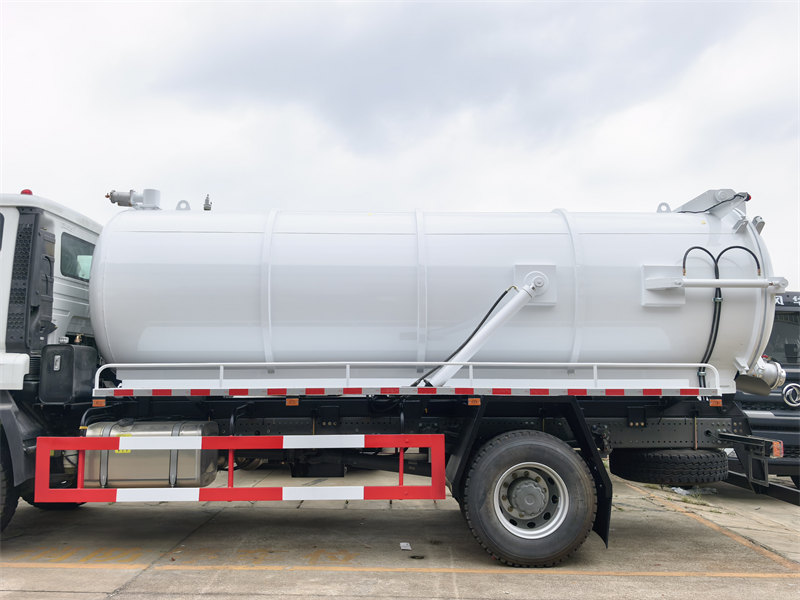

Tank |
||
|
Vacuum Tank Capacity |
12000 liters |
|
|
Material & Thickness |
Q345 carbon steel, 6mm thickness |
|
|

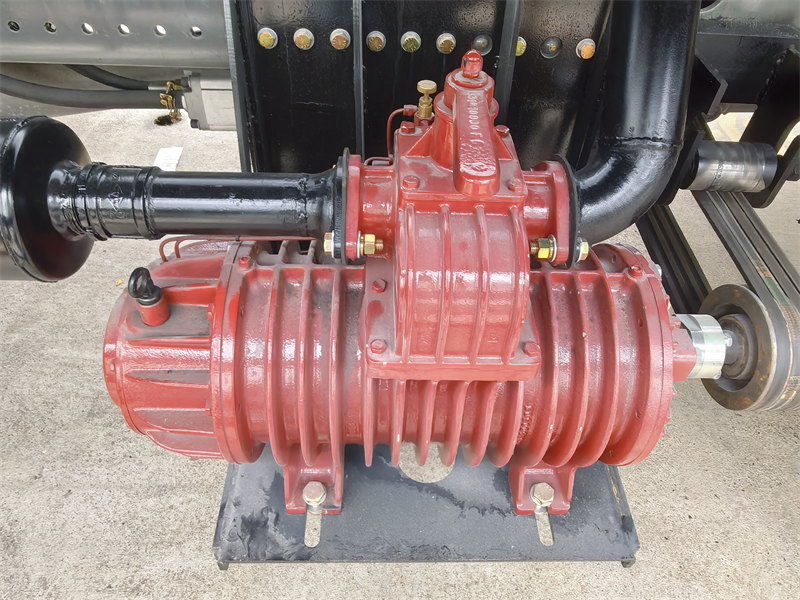

Vacuum Pump |
||
|
Vacuum Pump |
JUROP PN106D |
|
|
Max Vacuum |
92% |
|
|
Air flow |
10000L/min |
|
|
Suction Head |
7m |
|
|
Others |
Tank body can be hydraulic liftted nearly 45 degree |
|
|

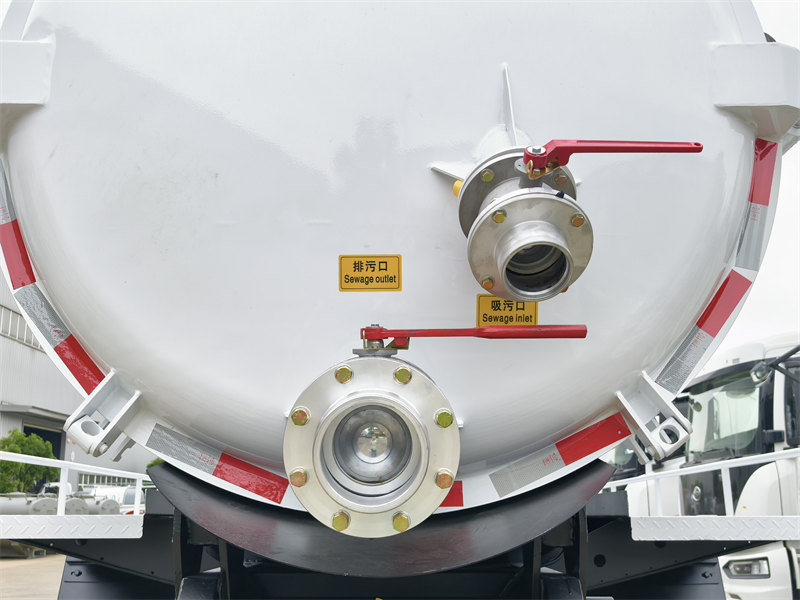

Rear door can be hydraulic opened for complete discharge of solid stuff. |
||
|
All Standard Accessories |
All standard accessories: manhole, tool kit, English manual. |
|
|
Optional Choice |
1.Tank material could be stainless steel. |
|
|

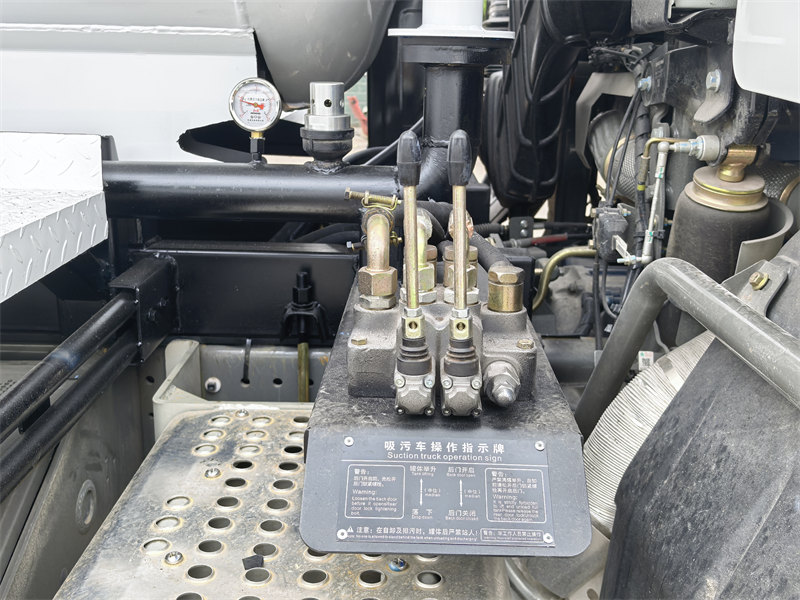

2.Control panel for vacuum pump is optional |
||
