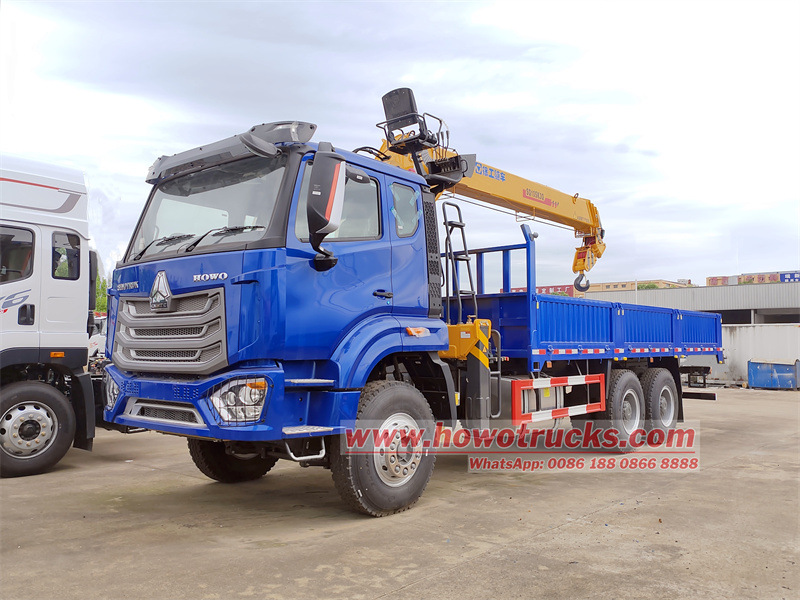

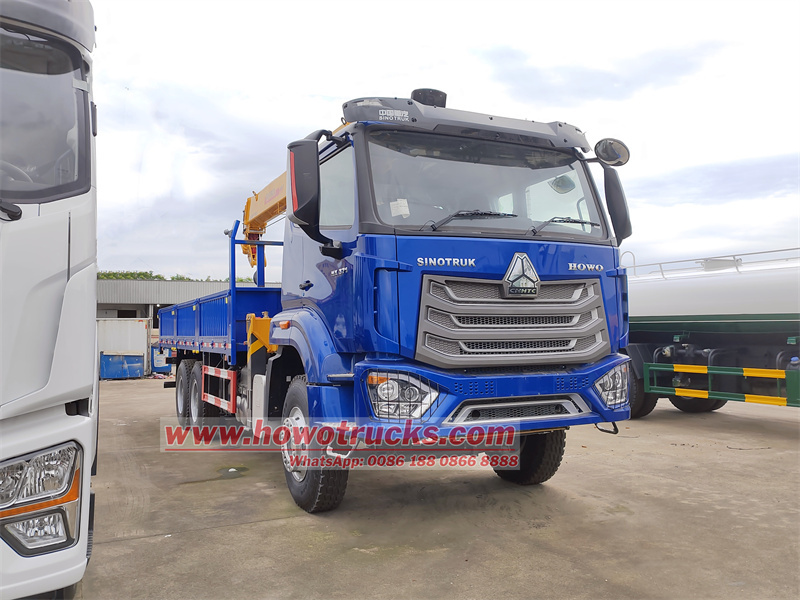

HOWO lorry truck with 10 T hydraulic crane

HOWO lorry truck with 10 T hydraulic crane

The Sinotruk Howo NX 6x4 truck-mounted crane has a 10-ton capacity and a wheelbase of 4600+1350mm. It is equipped with a Sinotruk WD615.47 371hp engine, an HW19710 10-speed transmission, and a XCMG SQ10SK3Q crane. The maximum lifting capacity is 10 tons, with a lifting torque of 25T·m. The cargo box dimensions are 6200x2450x550mm. The crane features hydraulic outriggers and ground control lever on both sides, left side upper control and a remote control box.

  • Kapasidad sa pagtatrabaho :

    5000L
  • Uri ng kubin :

    HOWO NX371
  • Sistema ng pagmamaneho :

    4X2
  • Wheelbase (mm) :

    4600+1350
  • Espesipiko sa makina :

    371 HP / Sinotruk WD615.47
  • Kahon ng gear :

    HW19710 , manual, 10 forwards & 2 reverses
  • Ehe sa harap (Kg) :

    9500
  • Ehe sa likuran (Kg) :

    16000 x 2
Mga Bagong Produkto

The HOWO lorry truck with 10 T hydraulic crane is a powerful medium-sized engineering tool that combines transportation and lifting capabilities. The chassis is driven by a 371-horsepower engine paired with a 10-speed transmission, providing robust load-bearing capacity. The superstructure features a XCMG 10tons 4-section straight boom crane with a maximum lifting height exceeding 12.35 m and a working radius of 12 m, easily handling site transport and equipment installation. The 6.2-meter carbon steel cargo box is sturdy and durable. With multiple operating modes including top-down and bottom-up controls, plus a remote control box, it allows for flexible and safe single-person operation, making it a practical choice for construction sites and logistics scenarios.

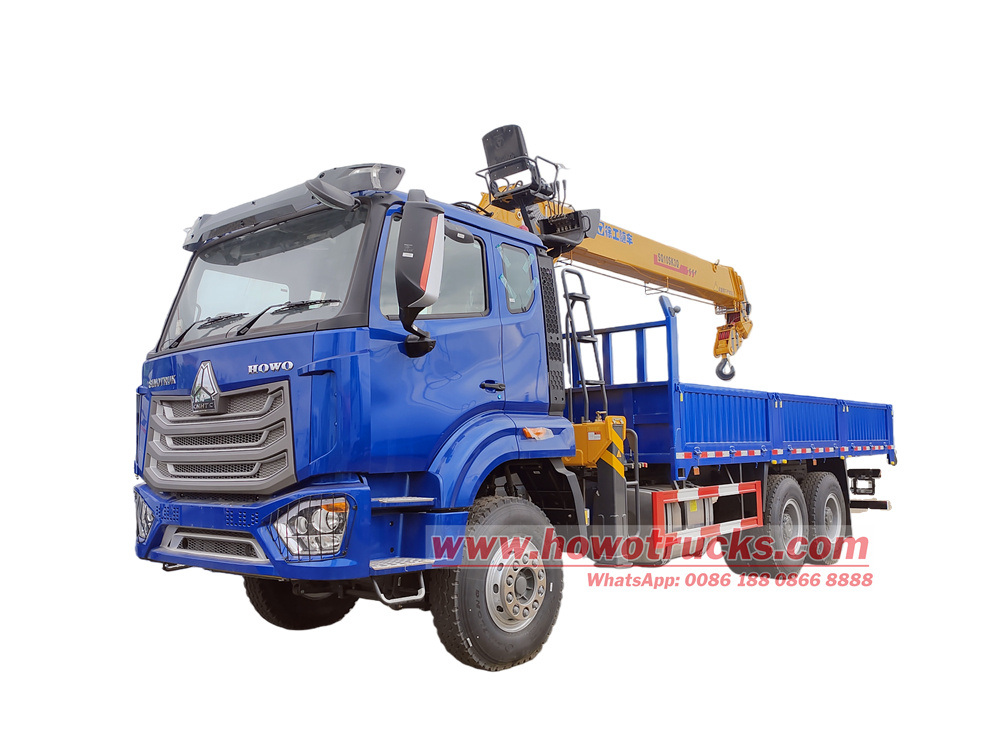

HOWO lorry truck with 10 T hydraulic crane

*HOWO NX 6x4 truck-mounted crane

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» Ⅰ.Main Configuration:



Manufacturer: CS TRUCKS GROUP LIMITED



Working Capacity

 Engine Model

 Wheelbase

 Application

XCMG 10tons crane

WD615.47 / 371HP

 4600+1350mm

• Construction sites:

• Logistics and transportation:

• Municipal engineering:

• Emergency rescue:



» Ⅱ. Product Parameter for HOWO NX 6x4 boom crane truck:



HOWO NX 6X4 mobile truck with crane

General Technical Parameters

Overall Dimension

9650 × 2550 × 3830 mm

Gross Vehicle Weight

25000 Kg

Curb Weight

15840 Kg

Chassis Specification

Chassis Brand

SINOTRUK HOWO NX

Drive model

6x4,LHD

Cabin

HOWO H77L cabin, Left Hand Driving, with one bed, A/C

Number of Passengers

3

Engine

Style

Inline 6 cylinders, water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged and intercooled, diesel

Model

SINOTRUK WD615.47

Power

371HP / 273kW

Rated speed

2200rpm

Max torque

1500N.m

Max torque speed

1100-1600rpm

Emission standard

EURO 2

Displacement

9.726L

Gearbox

HW19710, 10F & 2R,manual

Brake System

Air brake

Wheel Base

4600+1350 mm

Front/Rear Axle Loading

7000/18000(two axles) kg

Tire

315/80R22.510+1 tires

Max Driving Speed

90km/h

Upper structure Specification

Cargo Body

Dimension

6200 x 2450 x 550 mm

Material

Q235 carbon steel

Cargo Thickness

Side 3mm,Bottom 4mm

Boom crane

Model

XCMG SQ10SK3Q 4-sections boom crane

Max. Lifting Moment

25T·m

Max. Lifting Capacity

10000kg

Max.lifting height

12.35m

Max. Hydraulic Boom Length

12m

Rotation angle

360° ALL Rotation

Amplitude range

0~75°

Maximum working pressure

26 Mpa

Recommend power

30Kw

Max Oil Flow of Hydraulic system

63 L/min

Oil tank capacity

160 L

Crane weight

3765 kg

Installation space

1150mm

Optional function

1. knuckle boom crane.

2. Hydraulic tipper box.

3. Grab bucket

4. Aerial work basket

Other Configuration

Manually hydraulic joystick, Remote control operation, etc.



» Chassis Configuration



HOWO 6x4 truck mounted XCMG SQ10SK3Q boom crane

• Chassis Model: Sinotruk Howo NX371 chassis.



• Drive Type: 6x4 drive, high load-bearing capacity.



• Wheelbase: 4600+1350mm



• Powertrain: Sinotruk WD615.47 371hp inline six-cylinder diesel engine, 9.726L displacement, 1500 Nm torque, Euro III emission standard.



• Transmission System: Sinotruk HW19710 10-speed gearbox.



• Axles: VGD95 front axle (drum), MCX16ZG dual rear axles (drum) with a gear ratio of 4.803.



• Tires: 12.00R20 tires.



• Fuel Tank: 400L fuel tank.



» Ⅳ. Large-capacity cargo box:

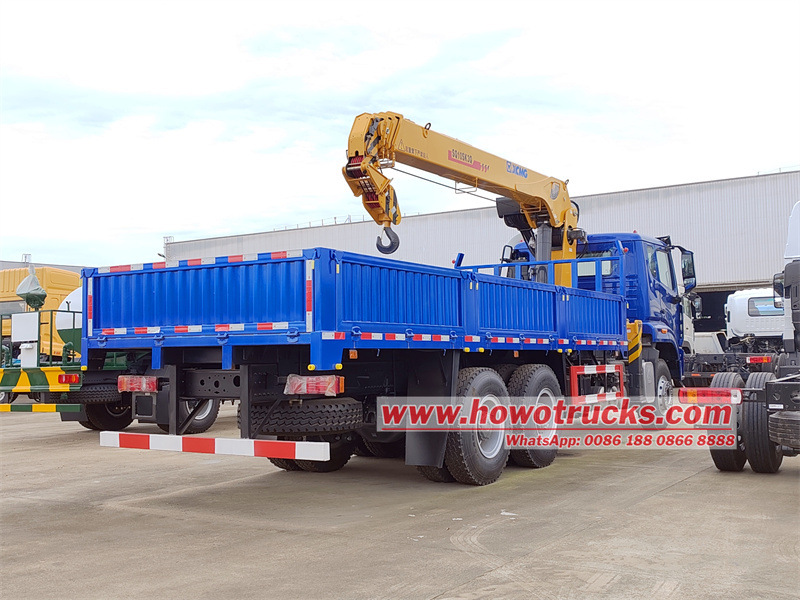

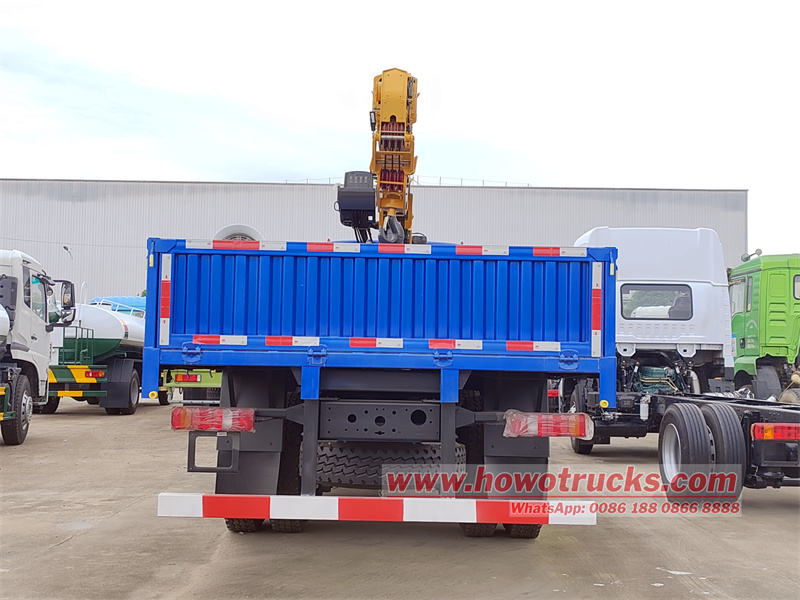

HOWO NX 6x4 10tons telescopic crane truck

• Cargo box dimensions: 6200x2450x550mm, ample loading space.



• Material and construction: Q235B carbon steel, sturdy and wear-resistant.



• Plate thickness: Side plates 3mm thick, bottom plates 4mm thick.



 ». XCMG SQ10SK3Q Crane:

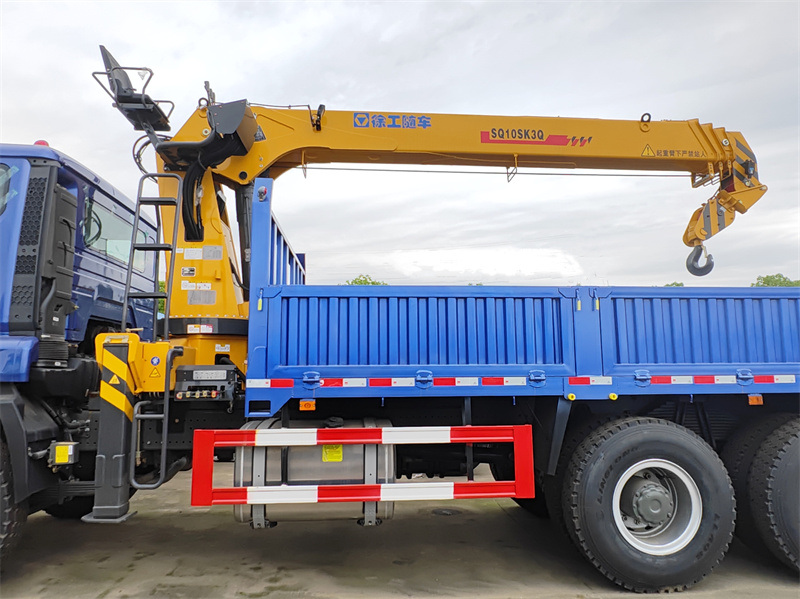

HOWO 6X4 cargo truck mounted XCMG 10tons boom crane

• Rated lifting capacity: 10 tons, maximum lifting torque up to 25 T·m, boasting powerful lifting performance.



• Boom technology: Utilizes 4-section synchronous telescopic straight boom technology for efficient and rapid operation.



• Working range: Maximum extended boom length 12 meters, maximum lifting height up to 12.35 meters, providing a wide working coverage.



• Weight: The crane weighs approximately 3765 kg, achieving a reasonable lightweight design while ensuring strength.



• Hydraulic system: Maximum working pressure 26 MPa, flow rate 63 L/min



• Working angle: 360° full rotation; amplitude range 0~75°

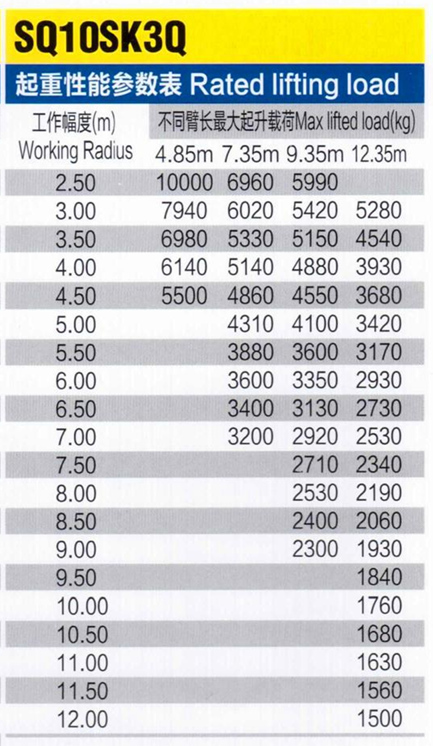

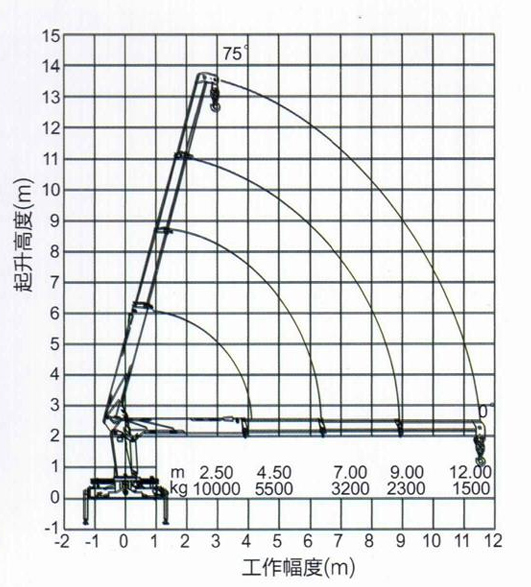

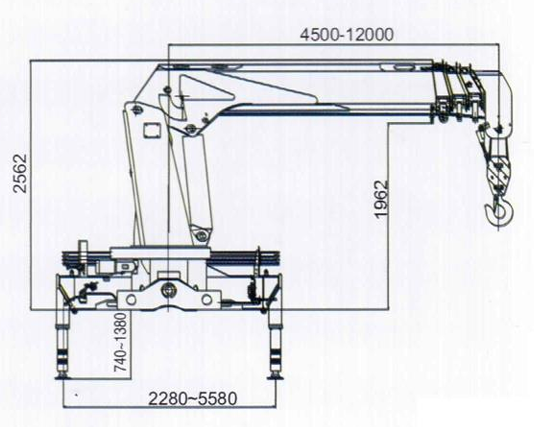

 XCMG SQ10SK3Q crane rated lifting load    XCMG SQ10SK3Q crane structure drawing XCMG SQ10SK3Q crane work rang

 » Ⅵ. Operation Control System:

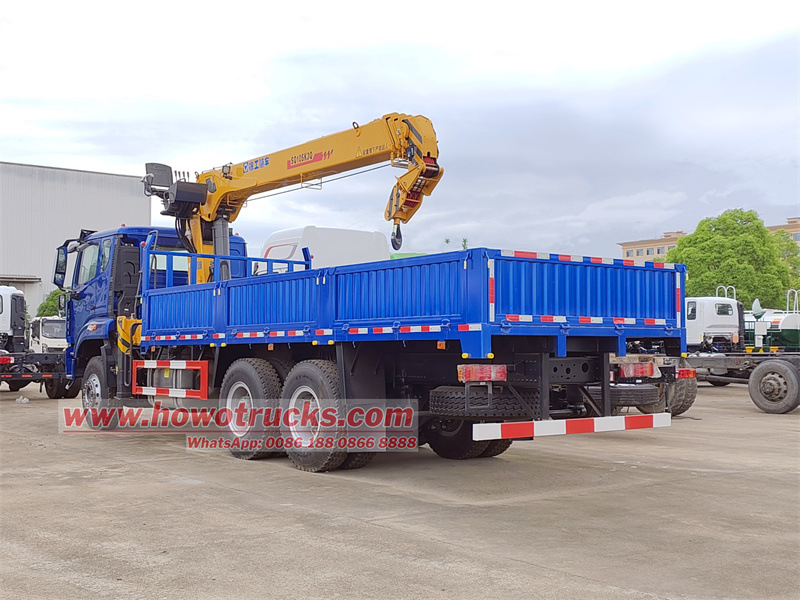

HOWO 6X4 10tons straight arm truck

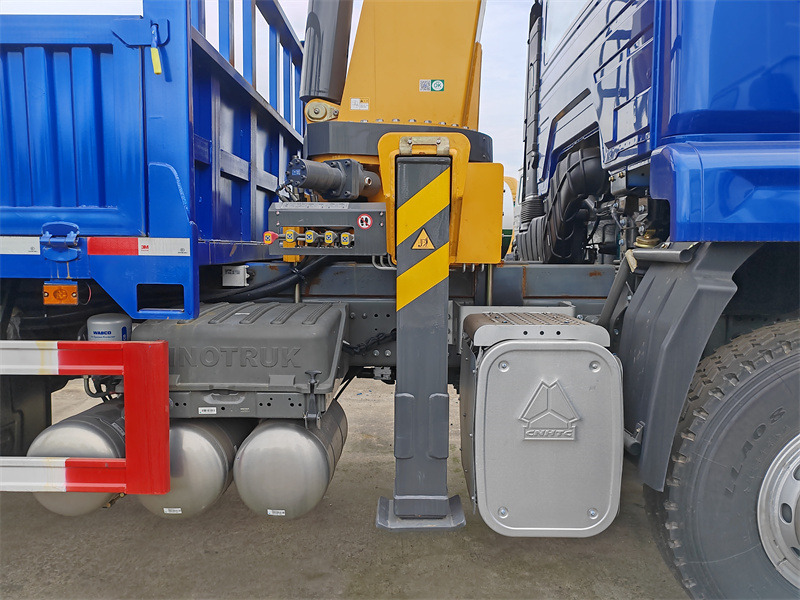

• Outrigger System: One hydraulic outrigger is installed on each side of the crane, forming a stable support structure.



• Control System:

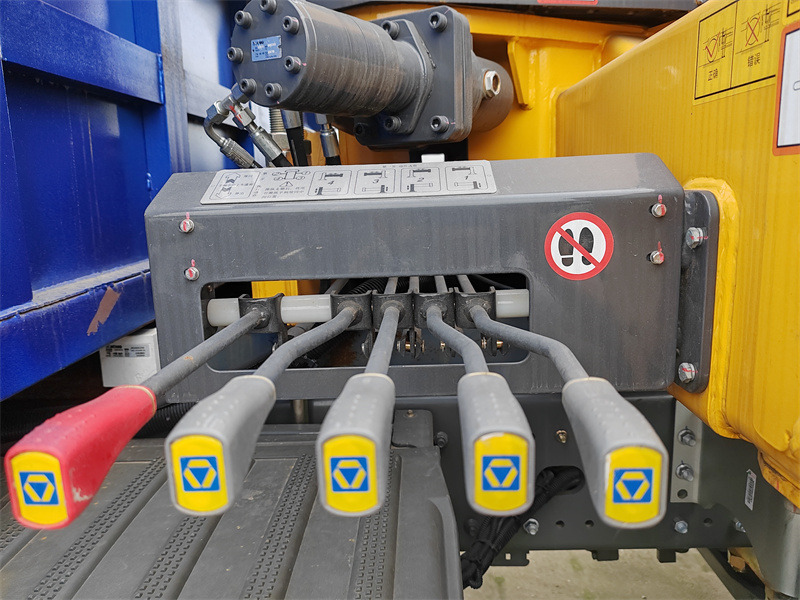

1. Side Operation: Manual hydraulic control levers is provided on each side, allowing the operator to control the crane from the optimal viewing angle.

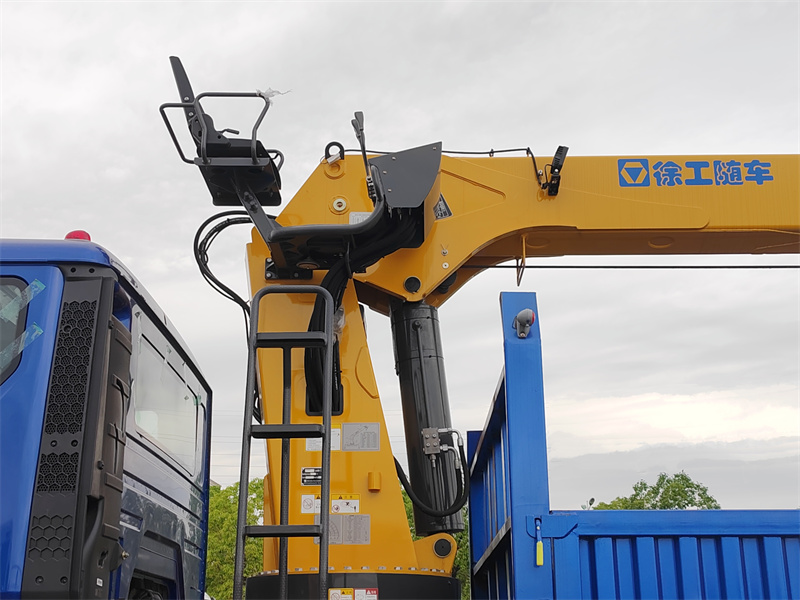

2. Upper Control Panel: An upper control panel with a seat is provided on the left side, integrating one set of manual hydraulic control levers, providing a high-altitude working view and precise control of lifting actions.

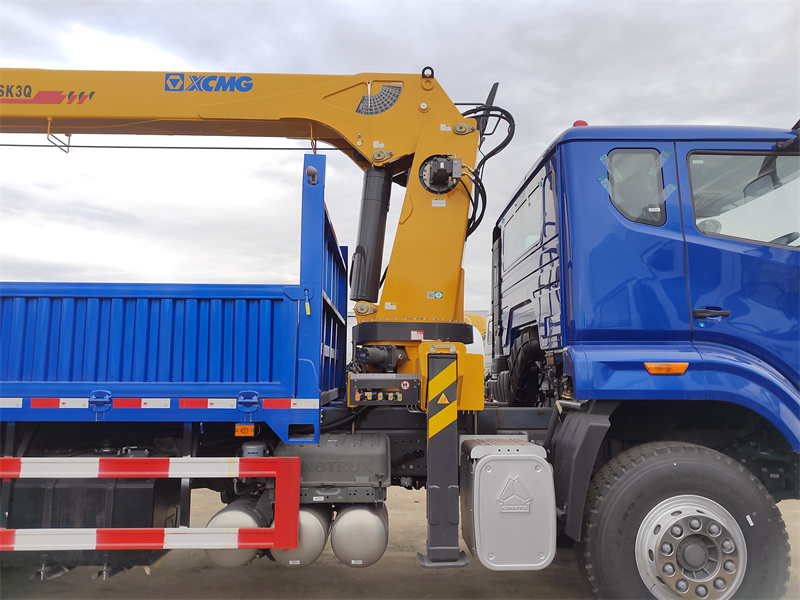

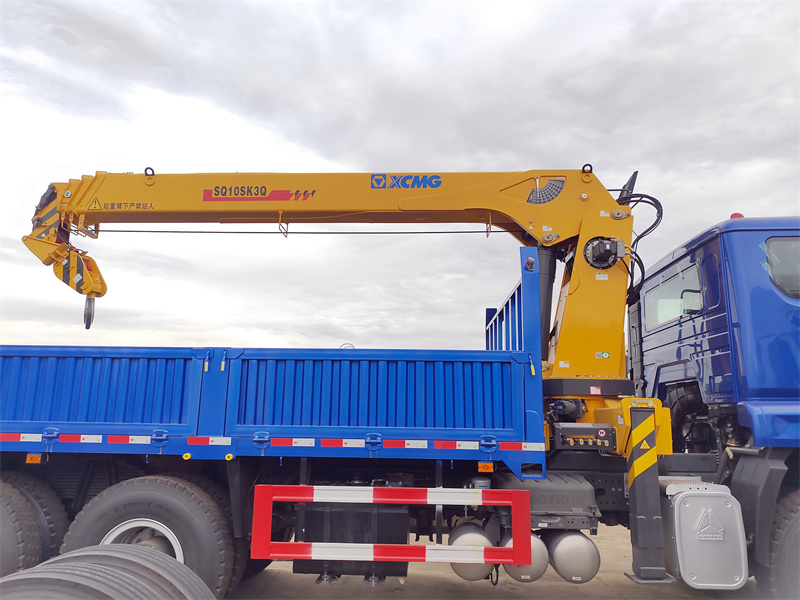

XCMG SQ10SK3Q boom crane

3. Remote Control Box: Equipped for more intuitive and convenient operation.



• Control Functions: All control levers work together to control all actions, including the horizontal and vertical extension and retraction of the outriggers, the extension, retraction, lifting and rotation of the boom, and the lifting and lowering of the hook, ensuring precision and flexibility.



Safety Functions:

o Overload Protection: The hydraulic system has a built-in pressure sensor that automatically limits the load in case of overload.



o Emergency Braking: An emergency stop button is provided on the control panel for rapid response to emergencies.

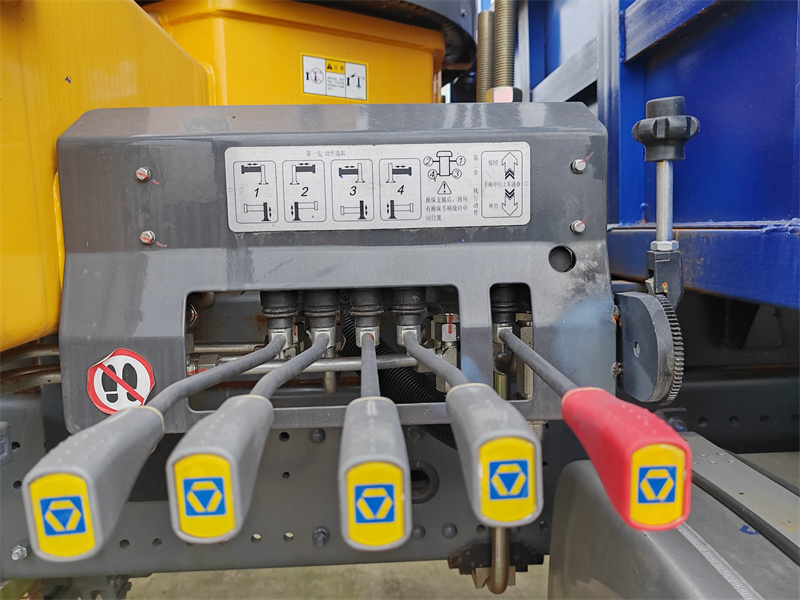

  • manual hydraulic control
  • Upper control
  • manual hydraulic control



 ». Application Scenarios:

• Construction Sites: Lifting rebar, concrete components, and scaffolding.



• Logistics and Transportation: Loading and unloading large equipment and containers.



• Municipal Engineering: Streetlight installation and billboard replacement.



• Emergency Rescue: Lifting supplies at disaster sites.



CS trucks 5000 square meters workshop for fire trucks.china best crane truck manufacturer. We are China best HOWO boom crane trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, crane truck, fire trucks. and other special purpose vehicles.
