Ghana HOWO 15000L crude oil tanker truck

Ghana HOWO 15000L crude oil tanker truck
HOWO 6x4 fuel tank truck
HOWO 15000L fuel tank truck
HOWO 6x4 heavy fuel tank truck
Ghana HOWO 15000L crude oil tanker truck
HOWO 15000L crude oil tanker truck
HOWO 6x4 crude oil tanker truck
HOWO heavy 400HP crude oil tanker truck
HOWO 15000L fuel bowser truck
HOWO heavy fuel bowser truck

Ghana HOWO 15000L crude oil tanker truck

Powered by a high-performance WP12S400E201 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker boasts a maximum power output of 400 horsepower. It is matched with a 10 forward and 2 reverse speed transmission system and a reinforced diaphragm clutch assembly. This premium powertrain configuration provides robust power reserve and precise, responsive control, enabling the truck to adapt seamlessly to various complex road conditions and complete fuel transportation tasks efficiently and stably.

  • Kapasidad sa pagtatrabaho :

    15000L

  • Uri ng kubin :

    HOWO single cabin, with one sleeper

  • Sistema ng pagmamaneho :

    6x4

  • Wheelbase (mm) :

    4600+1350

  • Espesipiko sa makina :

    WP12S400E201

  • Kahon ng gear :

    HW19710C, 10 forwards & 2 reverses

  • Ehe sa harap (Kg) :

    7500

  • Ehe sa likuran (Kg) :

    13000*2
Magtanong Ngayon
MGA KATEGORYA NG PRODUKTO
Mga Bagong Produkto

Powered by a high-performance WP12S400E201 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker boasts a maximum power output of 400 horsepower. It is matched with a 10-forward and 2-reverse speed transmission system and a reinforced diaphragm clutch assembly. This premium powertrain configuration provides robust power reserve and precise, responsive control, enabling the truck to adapt seamlessly to various complex road conditions and complete fuel transportation tasks efficiently and stably.

The tanker features a genuine 15,000 liter actual tank capacity to meet large-volume fuel transport demands. The tank body is constructed from high-quality Q235 carbon steel with a wall thickness of no less than 4mm, ensuring outstanding durability, pressure resistance and corrosion resistance for long-term service. Fitted with top-tier Chinese brand fuel pumps, valves and pipeline systems, along with a complete set of professional fuel distribution devices, the truck guarantees stable fuel delivery, high working efficiency and reliable operational safety.

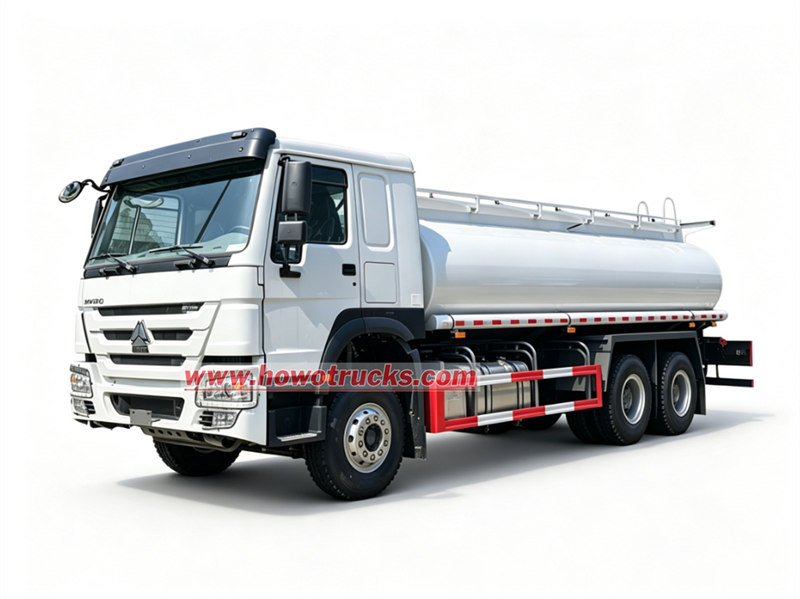

 HOWO 6x4 fuel tank truck

*HOWO Heavy 6x4 Fuel Pump Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.





✦Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:



▶ Chassis: SINOTRUK 6x4 heavy-duty chassis powered by 371HP WEICHAI diesel engine.



▶ Tank Capacity: 25 CBM single-compartment or multi-compartment design (customizable up to 6 compartments.



▶ Tank construction: 5mm Q235 carbon steel plate with anti-corrosion coating, reinforced with internal baffles for surge suppression.



▶ Pumping & Dispensing System: China's famous brand pump with PTO drive, complete with fuel dispenser and pipeline system.



▶ Operation Scope: Designed for gasoline, diesel, and fuel oil transportation, fuel station distribution, and industrial fuel logistics.



HOWO heavy 15000L fuel pump truck



✦ Ⅱ.Product Parameter For HOWO Fuel Pump Truck  « « «

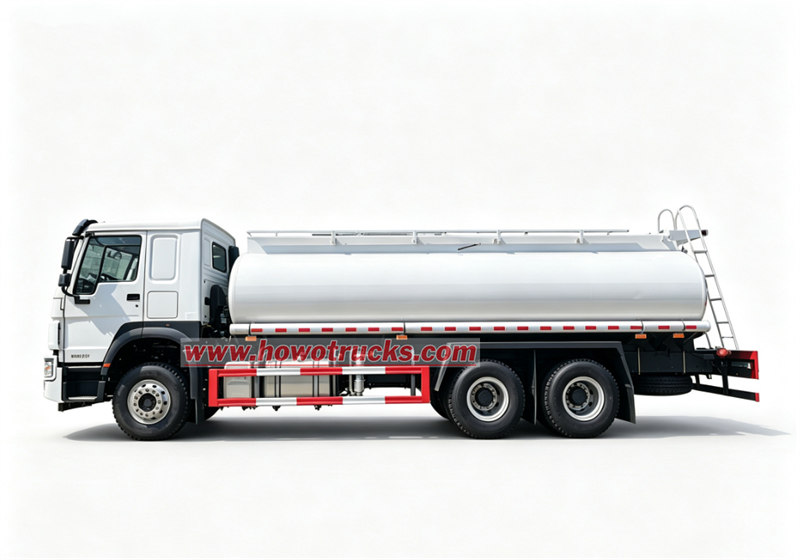

 HOWO 6x4 fuel pump truck


HOWO 6x4 Fuel Tank Truck

Drive system

6X4

Chassis

HOWO

Vehicle Main Dimensions

Dimensions(L x W x H)mm

10300*2580*3350

Wheel base (mm)

4600+1370

Overhang (front/rear) (mm)

1380/1820

Approach/Departure angle(°)

22/17

Weight in KGS

Curb Weight

13500

GVW.

33000

Max. driving speed(km/h)

105

Engine

Model

WP12S400E201

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

400 HP

Emission standard

Euro 2

Gearbox

HW19710, 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

400L

Tire

12.00R20  12 pcs+1 spare tire

Upper Body

Fact cubage

15000Liters

Protective material

Q235 carbon steel

Tank meterial

<6mm> carbon steel

Equipment

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser
2.Equipped  with a ladder on tank
3.It can be design to have several compartments according to your requirements
4.Equipped with speed limiter. The speed limit of 95 km/h

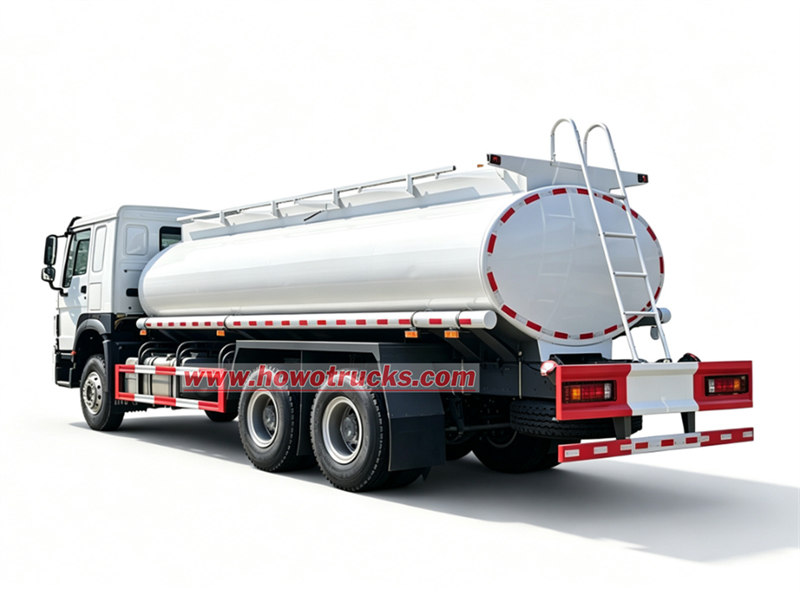

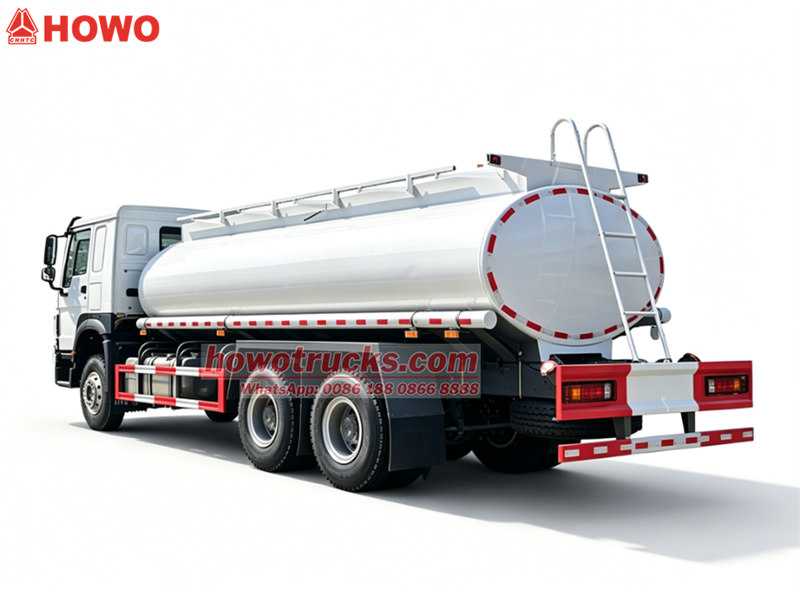

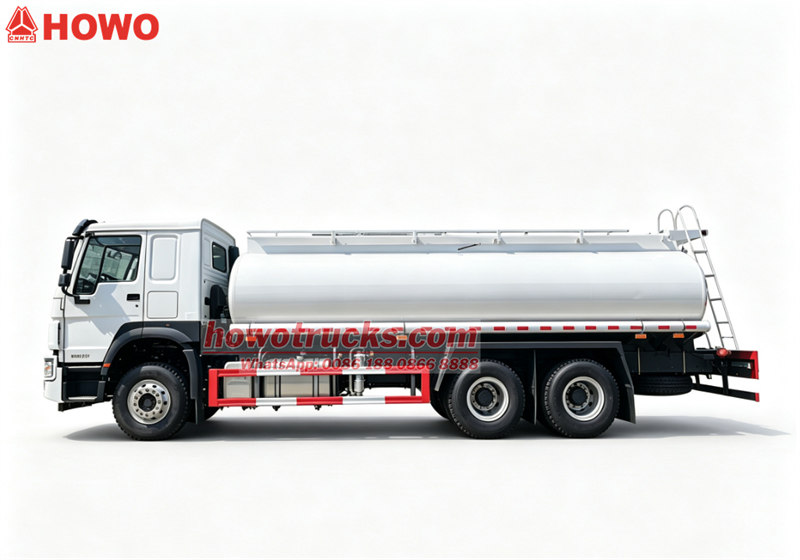

HOWO 15000L fuel tank truck



✦ Ⅲ. HOWO Heavy 15000L Fuel Pump Truck  « « «



HOWO fuel tank truck

♦ The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.

♦ The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.

♦ The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

♦ The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.



HOWO fuel tank truck

♦ The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.

♦ The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.

♦ The tank opening is a φ500 diameter hole for maintenance and repair.

✦ Ⅳ.HOWO Heavy Fuel Tank Truck Details « « «

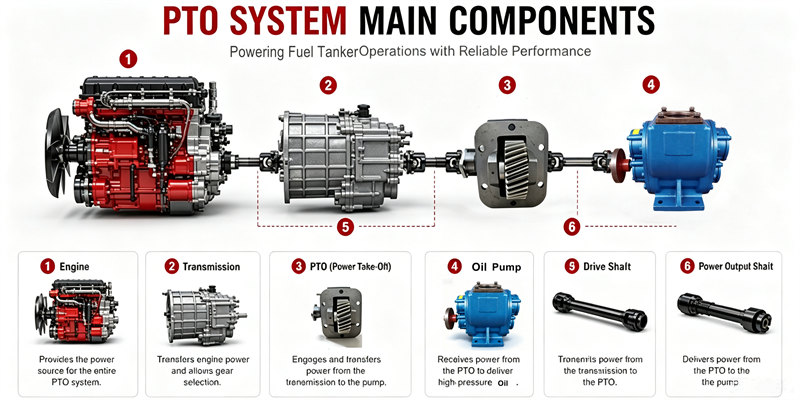

The gear pump is the core component of an oil truck, acting as its "heart" for efficient fluid transfer. It operates via a pair of meshing gears inside the pump body, which work together to create pressure differentials and move oil.

When the drive gear shaft rotates counterclockwise, it turns the driven gear clockwise. This expands the right cavity (suction side) between the meshing gears, lowering pressure and forming a partial vacuum. Atmospheric pressure then pushes oil from the reservoir into the pump’s suction port, filling the gaps between gear teeth.



HOWO fuel tank truck



As the gears rotate, oil trapped in the tooth spaces is carried to the left cavity (discharge side). Here, gear meshing reduces the cavity volume, increasing pressure to force oil out through the discharge port. This continuous suction-discharge cycle delivers a steady oil flow to machinery lubrication points.



This simple, durable mechanism makes gear pumps highly reliable for oil truck use, ensuring consistent performance even in demanding conditions.



fuel pump fuel pump



Part Name

Qty.

Material

Pump Cover

1

Gray Cast Iron HT200

Pump Body

1

Gray Cast Iron HT200

Paper Gasket

1

—

Gear Shaft

1

45# Carbon Steel (z=10, m=4)

Driven Gear

1

45# Carbon Steel (z=10, m=4)

Driven Shaft

1

45# Carbon Steel

Nut

1

Q235-A Carbon Steel

Gland

1

Gray Cast Iron HT200

Steel Ball

1

45# Carbon Steel

Spring

1

65Mn Spring Steel

Adjusting Screw

1

Q235-A Carbon Steel

Protective Nut

1

Q235-A Carbon Steel



fuel pump

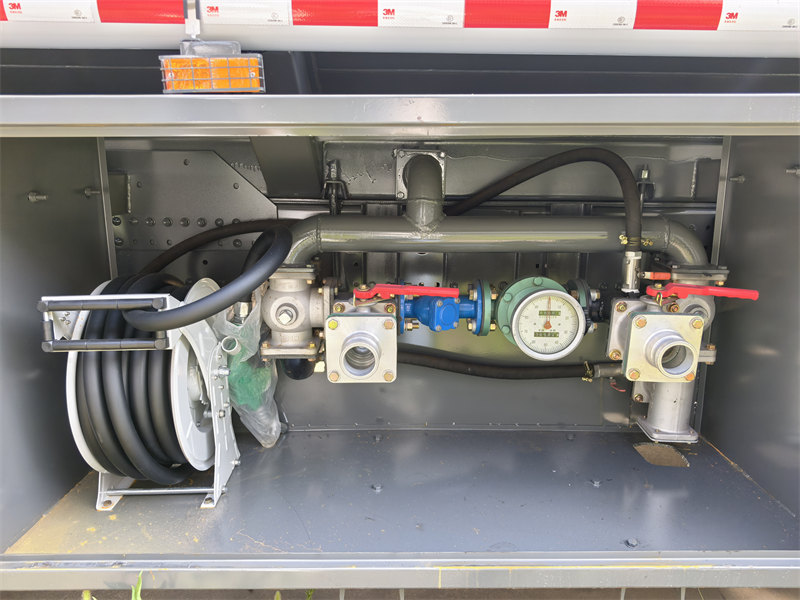

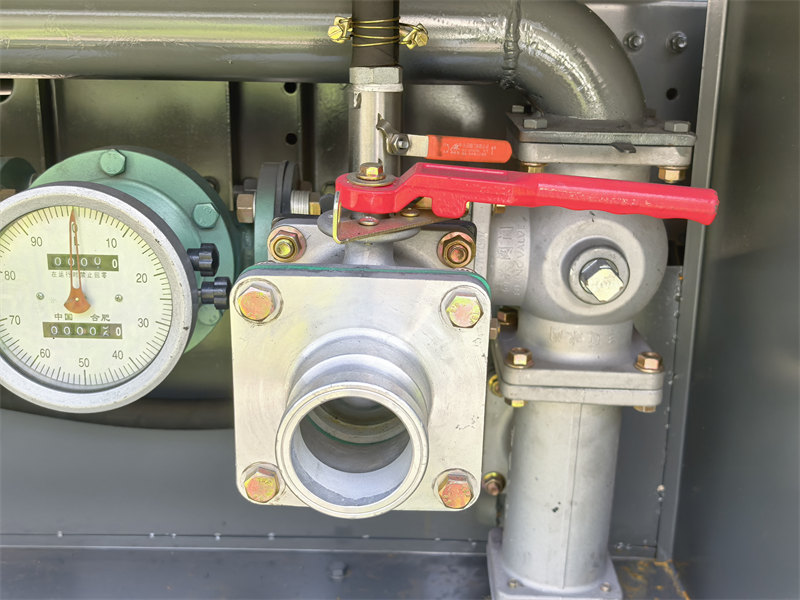

✦ Ⅴ.HOWO Fuel Truck Pipeline Operation Diagram « « «



♦ Pump out:

(1) Turn the four-position three-way ball valve mark point to the direction of forward B);

      Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other

(2) Open two-way Ball Valve 1to pump oil;

(3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be       achieved refueling refueling machine.



Howo fuel tank truck



♦ Pump in:

(1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;

(2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.

(3) Other functions:The user can adjust and realize various functions according to the oll circult principle.



  • fuel tank truck
  • fuel tank truck
  • fuel tank truck



✦ Ⅵ.HOWO Fuel Truck Safety Protection Devices « « «



♦ The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

♦ A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

  • Howo heavy 25000L fuel tank truck
  • Howo heavy 25000L fuel tank truck
  • Howo 20ton crane truck



♦ To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

♦ Fire extinguishers are provided on both sides of the oil tank.



⇒ Products--100% Customized Level One!
⇒ Transportation--100% Safety, Convenience, Efficient!
⇒ Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

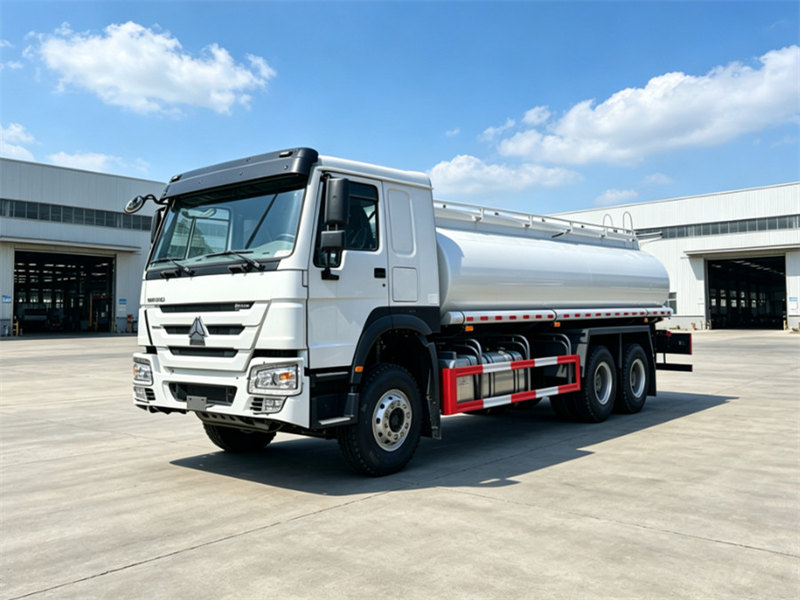

HOWO heavy 15000L fuel tank truck



HOWO heavy 15000L fuel tank truck
